High Speed Printing with Precision

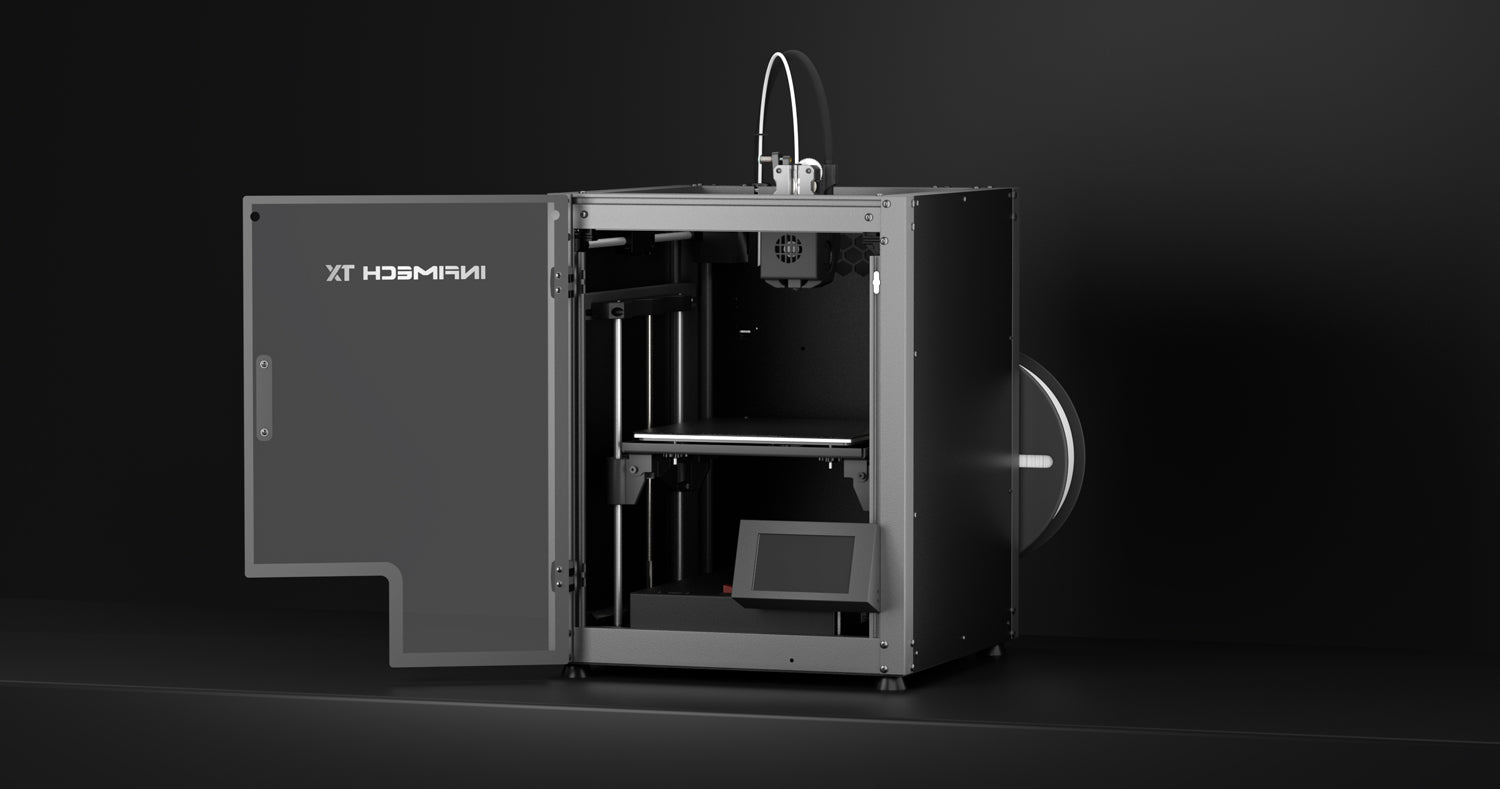

Received to use
- Whole body pre-assembly in box
- Only install touchscreen to start
Up to 20000 mm/s² Acceleration
- CoreXY move structure,up to 20000mm/s² Acceleration.

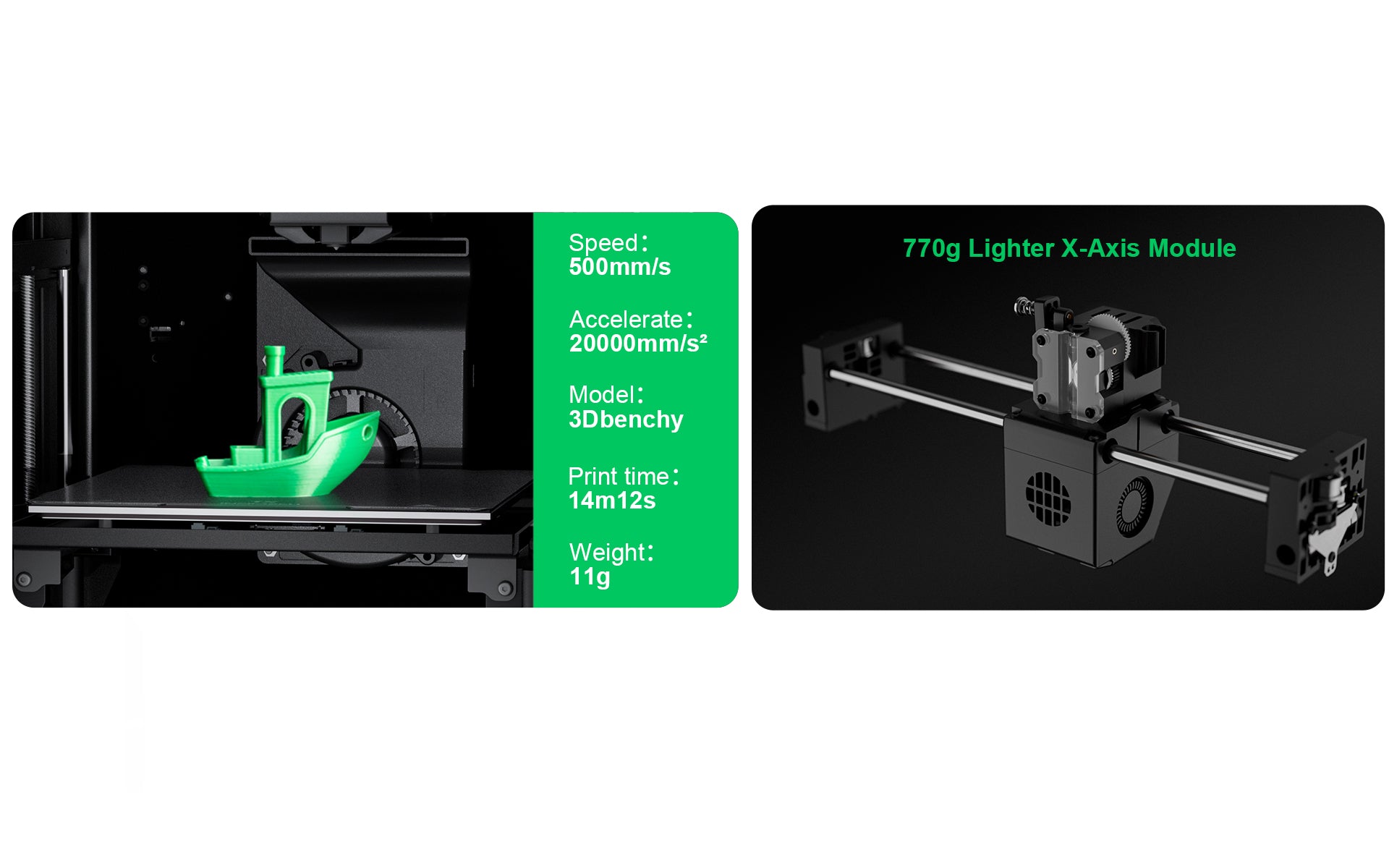

- Weight only 770g X-Axis Module, for smoother motion.
- High-volume strong extrusion by 12.5:1 reduction ratio.
- Precision-built helical gear drive,high speed long-lasting.
Super Fast with High Precison

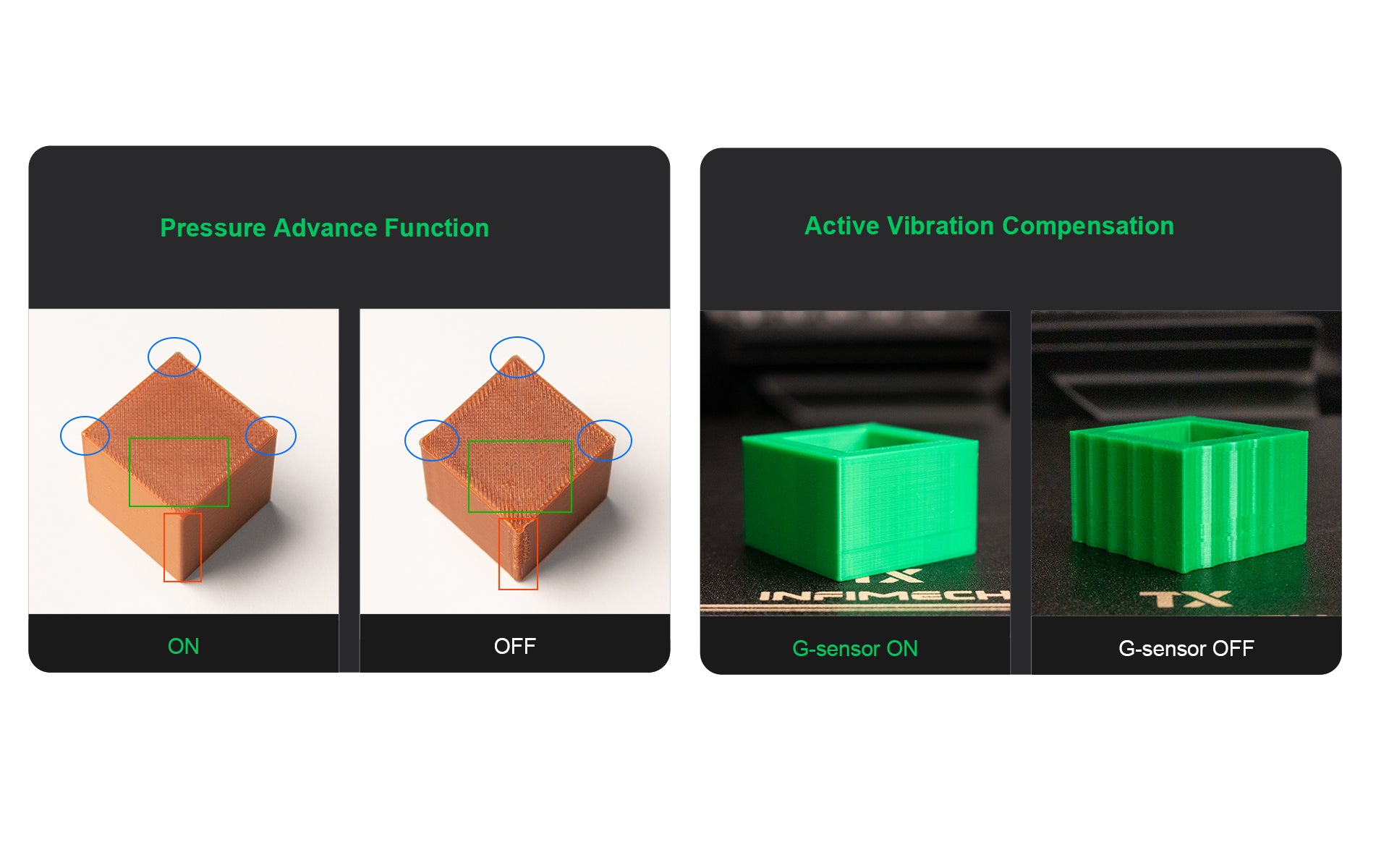

- Active Vibration Compensation: Built-in ADXL345 module monitors machine vibrations and actively reduce shaking to improve printing quality.
- Pressure Advance Function: Minimizes oozing, bulging, and shrinkaging,to improve model surface precision.
- Independent Dual Z-leveling: High-precision force sensors check bed flatness. while Z motors adjust bed angle in real time, ensuring a perfectly smooth first layer printing.

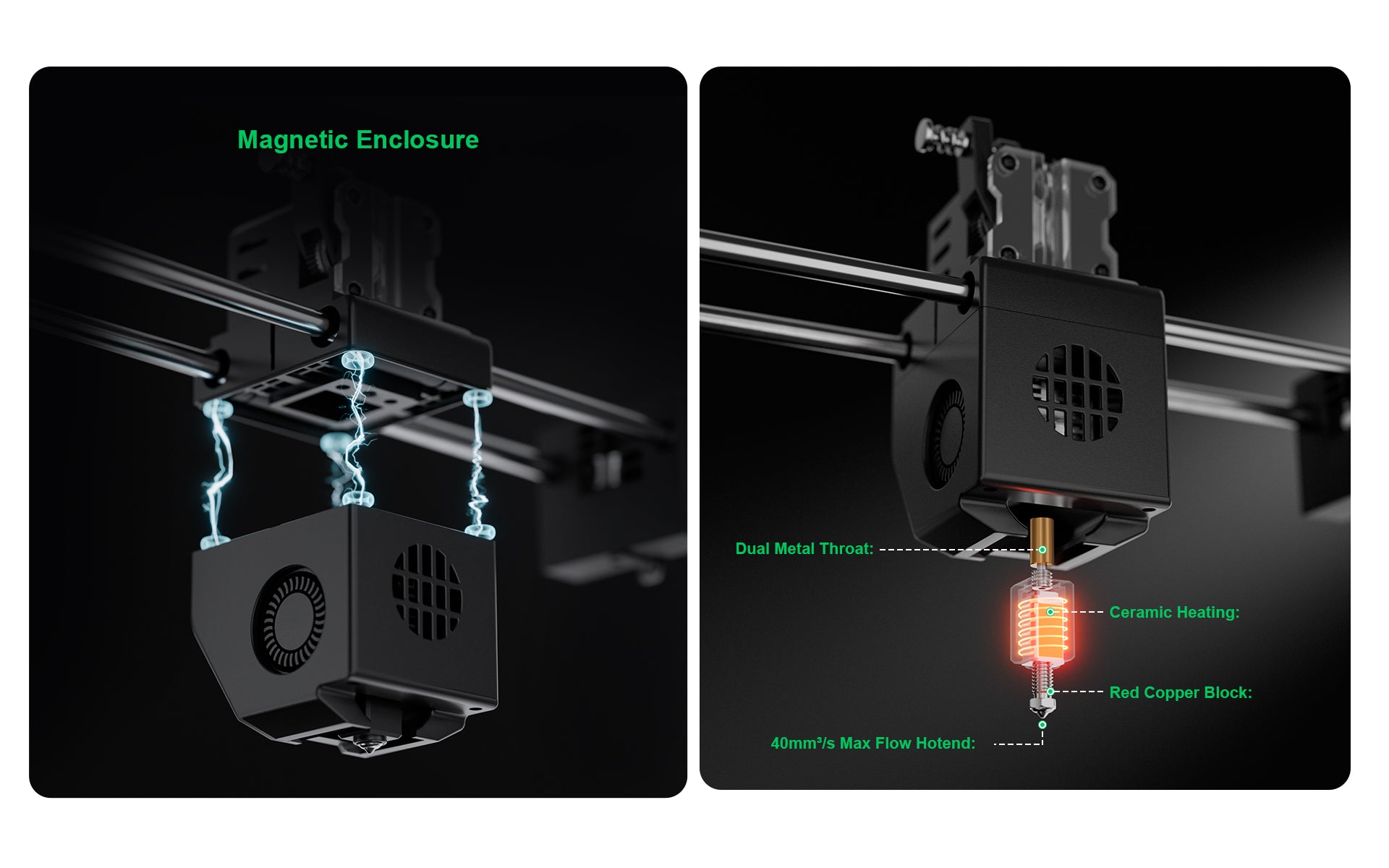

New Generation Hotend Module
- Standard size hotend for quick and easy replacement.
- Ceramic Heating：Fast and even heating up to 300°C.
- High-temp resistant, excellent thermal conductivity.
- Dual Metal Throat: keep minimal retraction resistance.
- Max 40mm³/s flow hotend,stable and ample extrusion.
- Removable Magnetic Enclosure for easily maintenance.

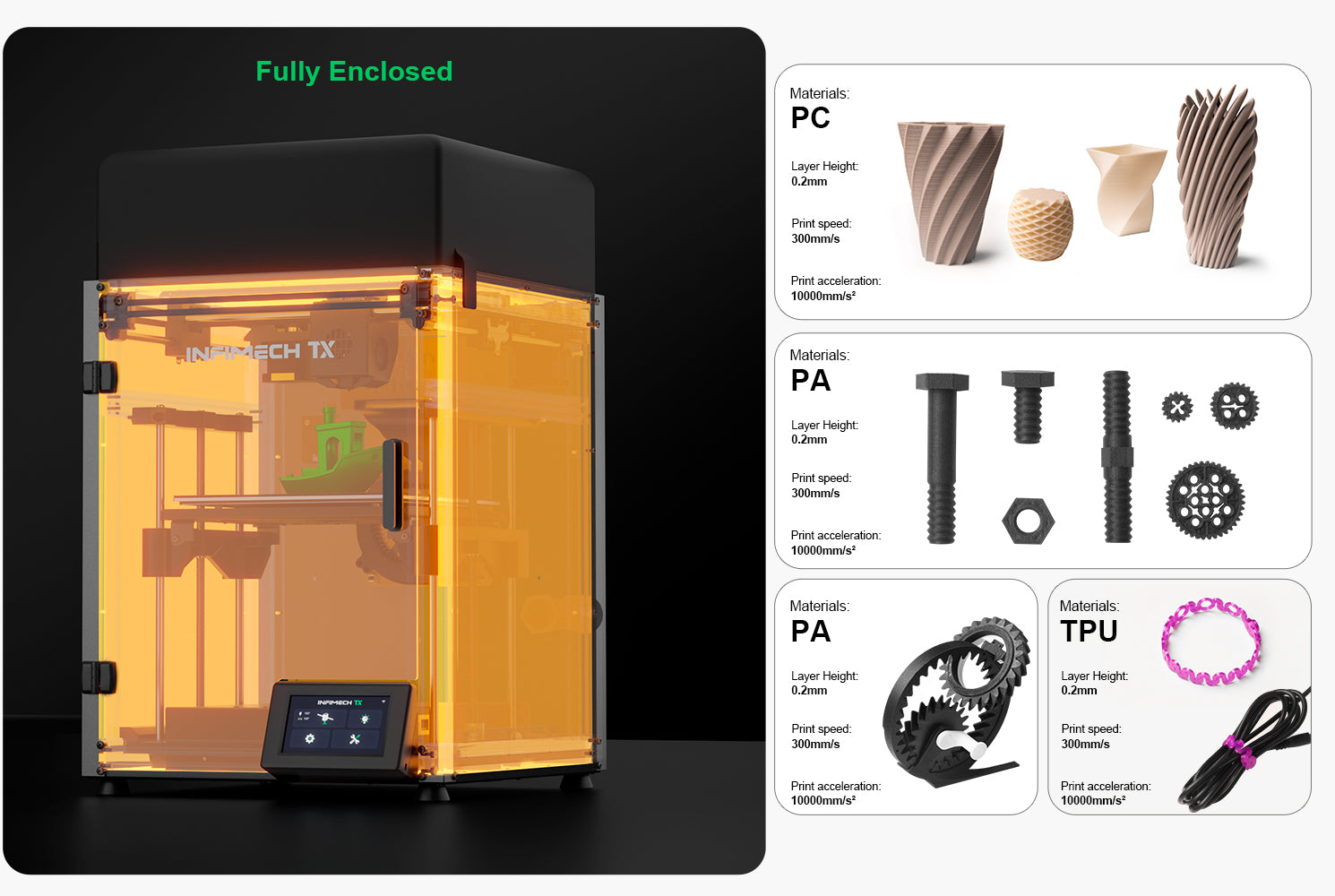

Fully Enclosed Room
- Stable internal temperatures for
high-quality printing of ABS, PC, PA.

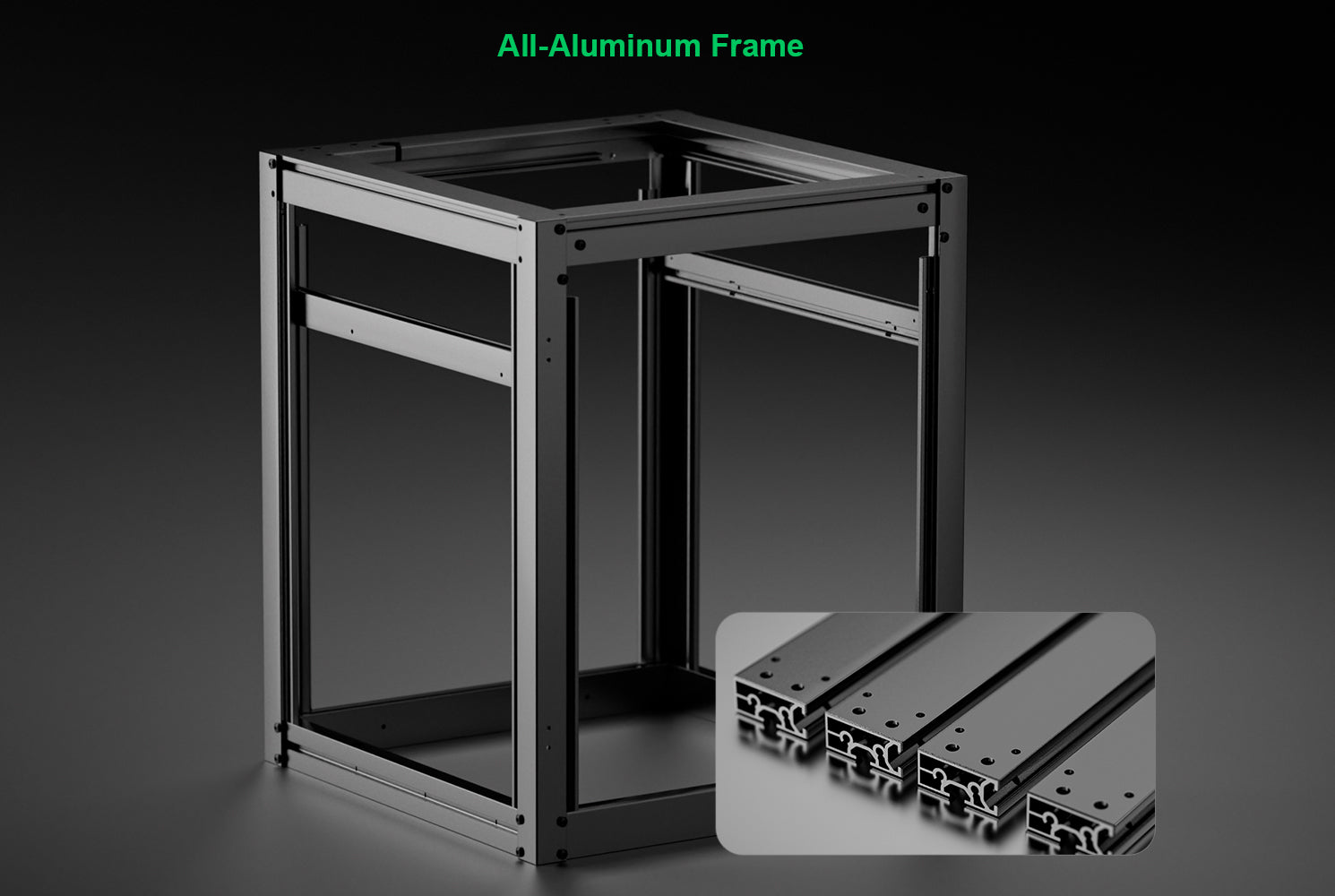

All-Aluminum Frame
- CNC aluminum profiles for sturdy and durable
construction, ensuring high-speed printing.

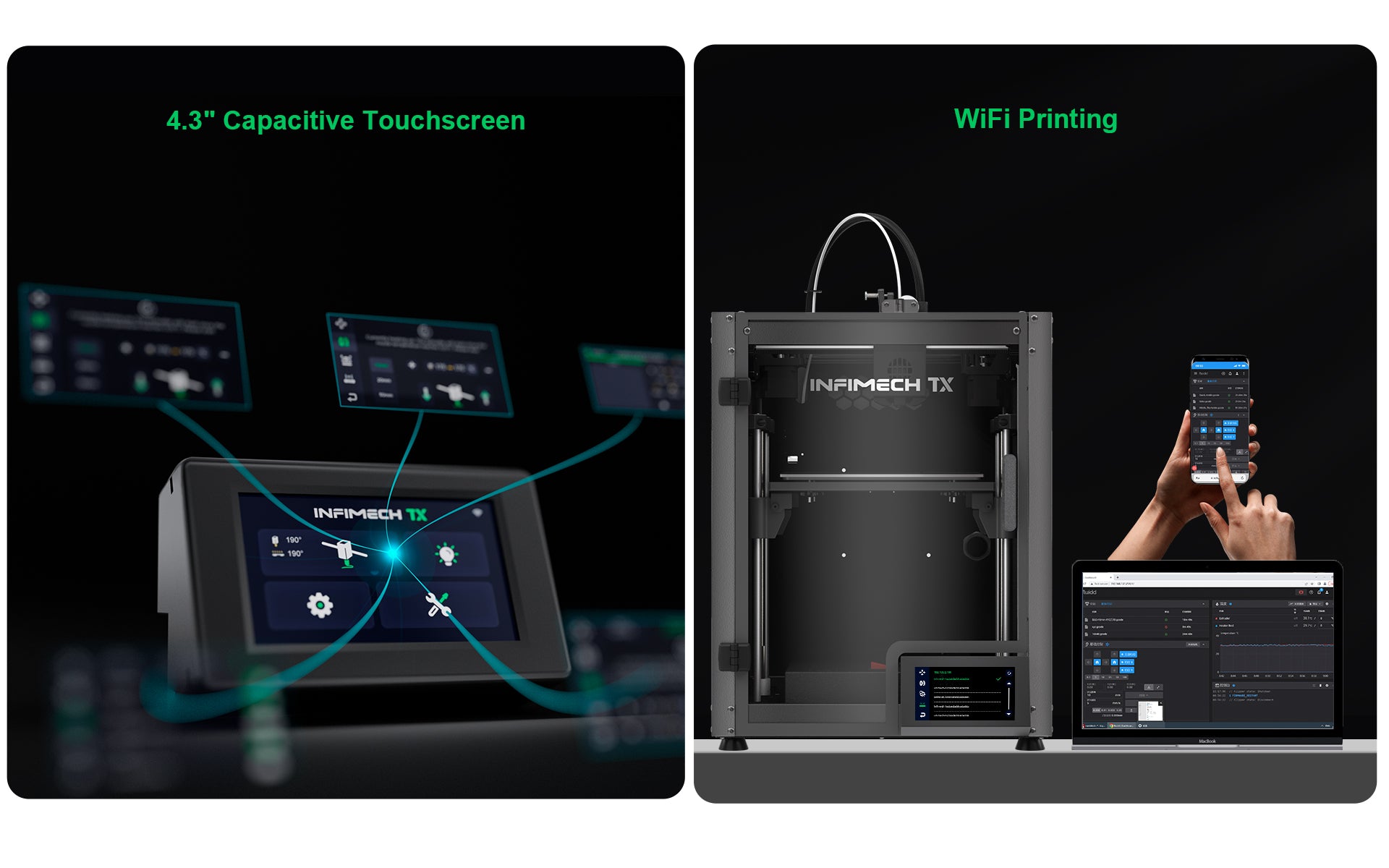

Easy to Use
- Wifi connection,controled by Phone or Computer
- 4.3' Touchscreen,Native Klipper UI, rich features, user-friendly.
- Basic USB Connection

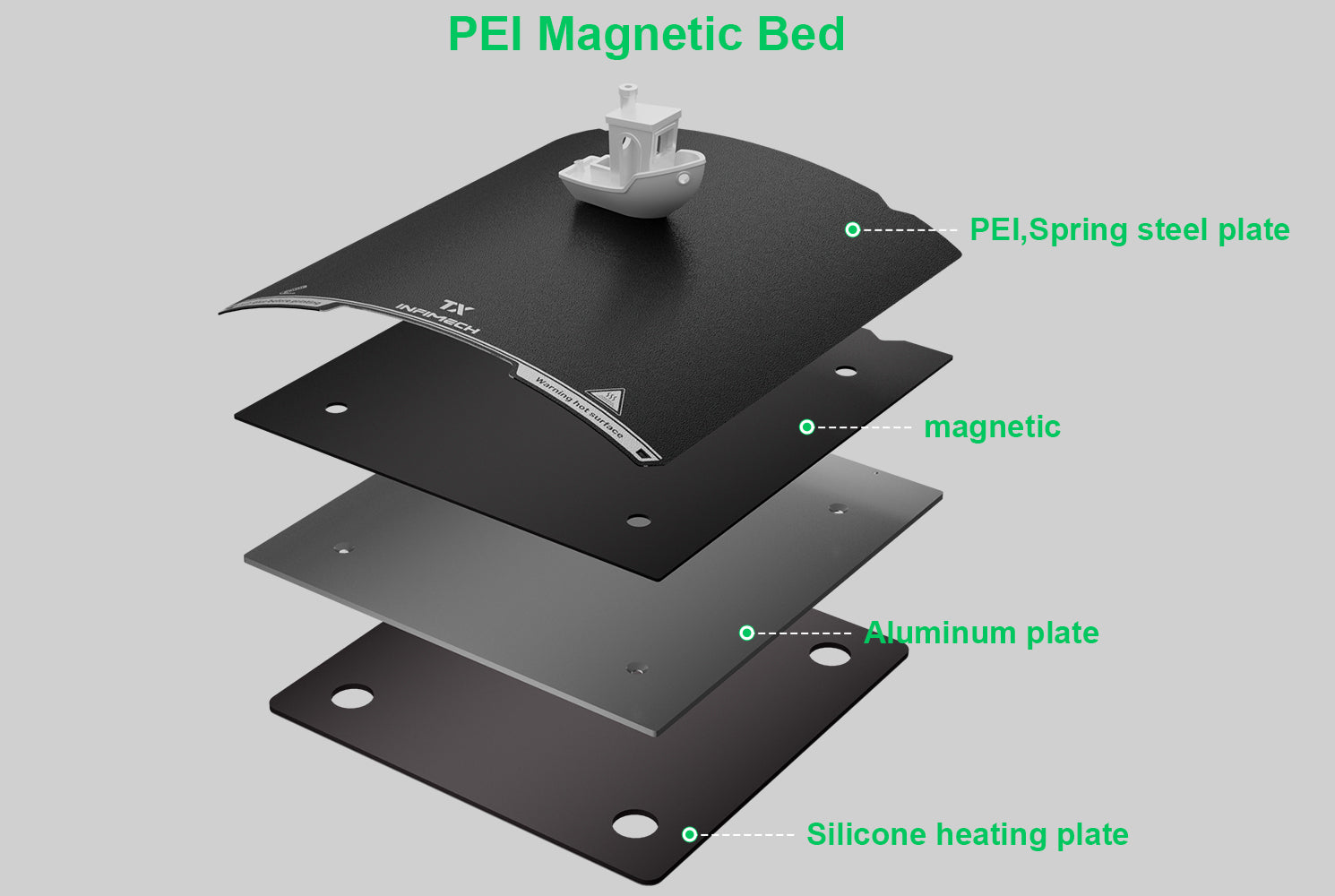

Magnet PEI bed
- Double side printing,Improve the durability
- strong adhension and modle remove easily

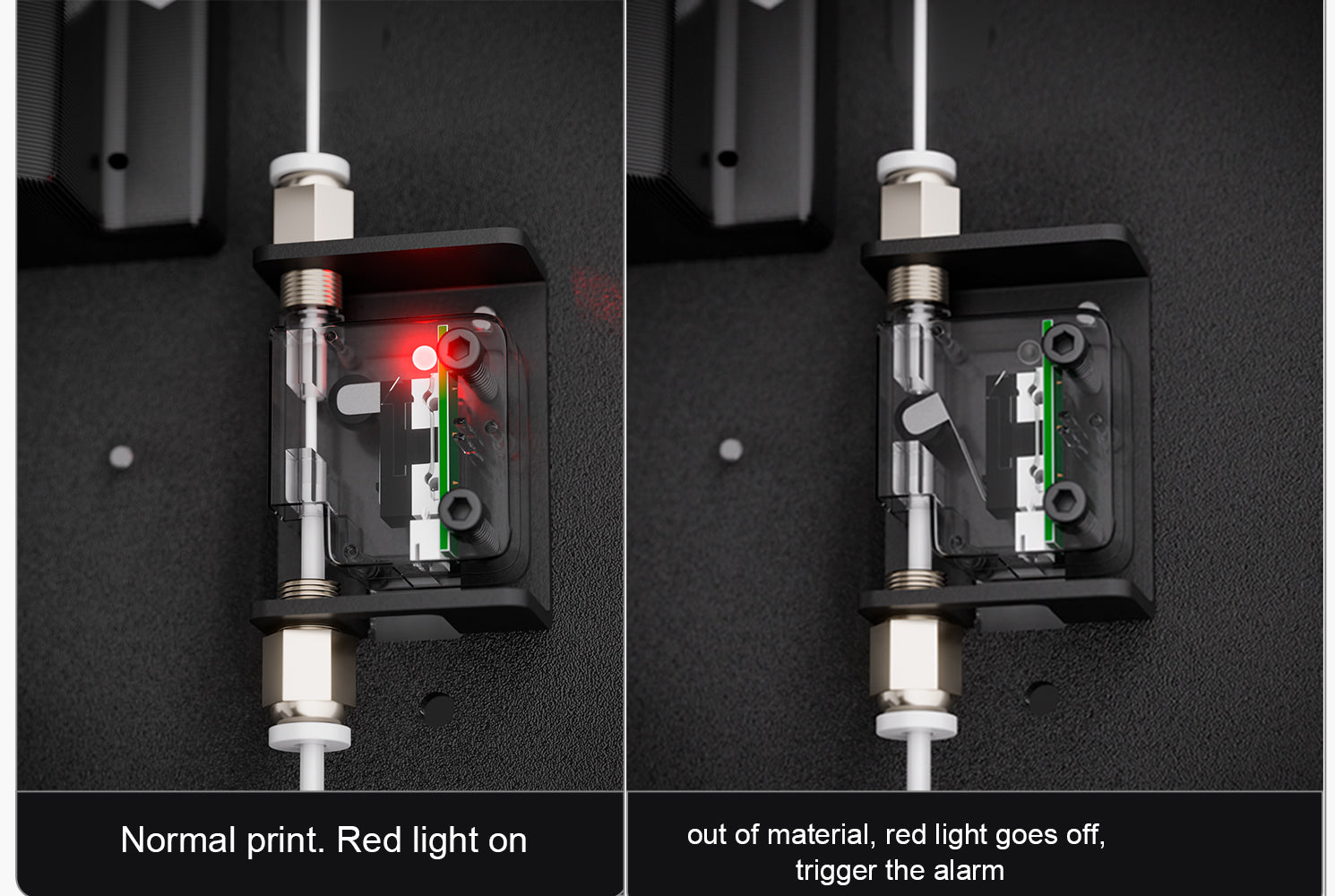

Filament Runout Detection
- Automatic pause and alert when filament
breaks or runs out during printing.

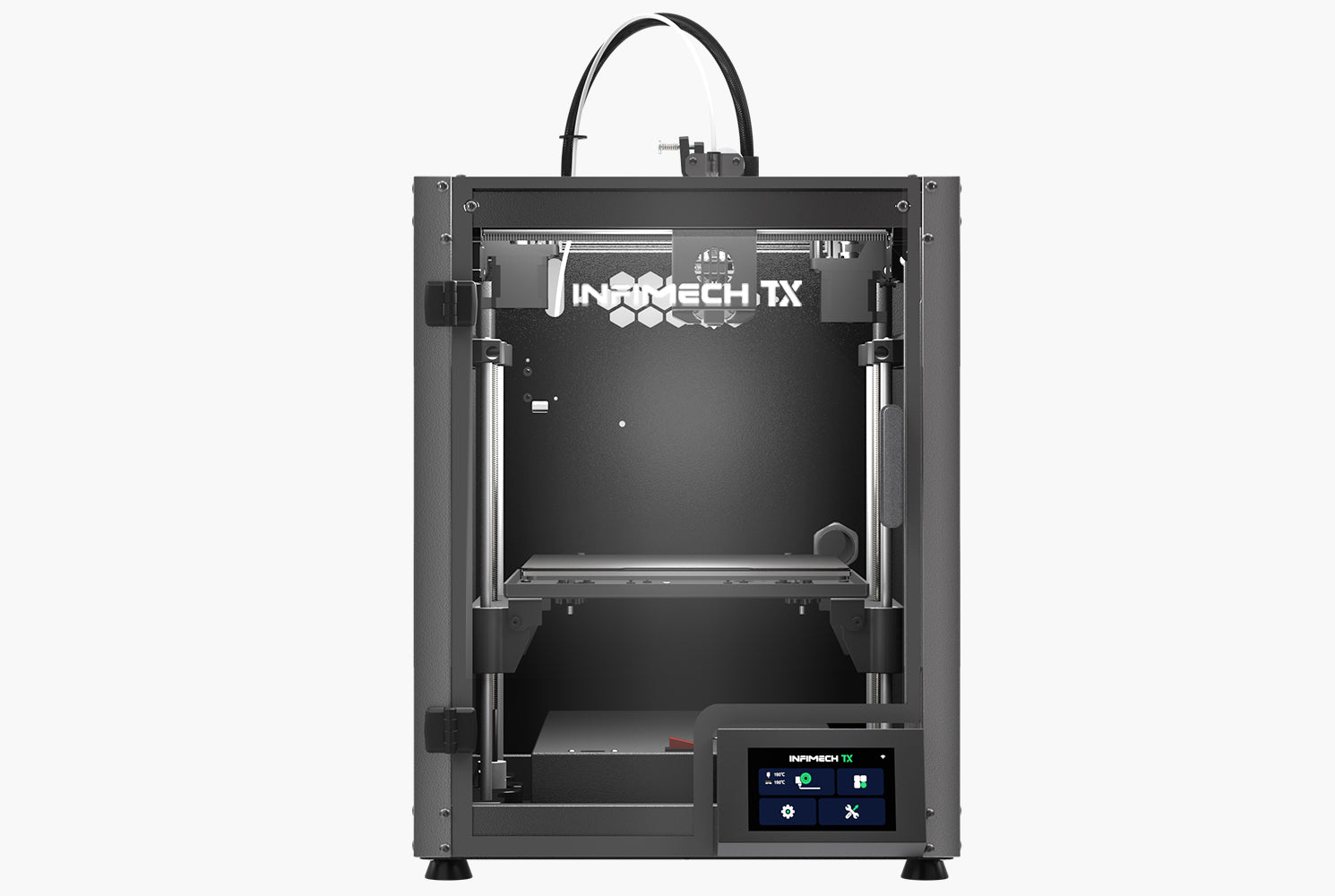

Higher Power Lighting
- Installed for clear visibility of the printing process.

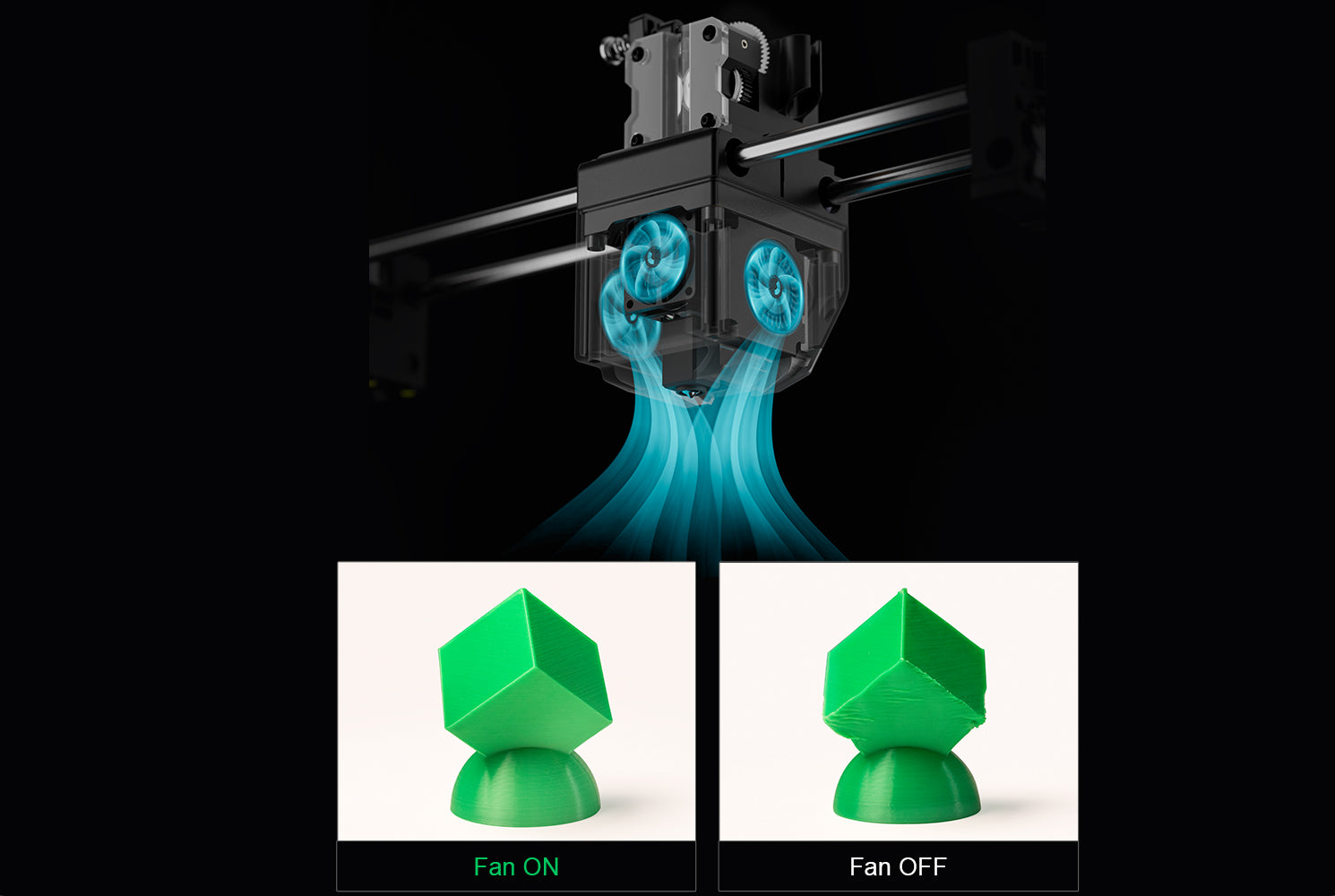

Dual Fan
- Spinning at up to 13000r/min,
elevate your model's surface quality.

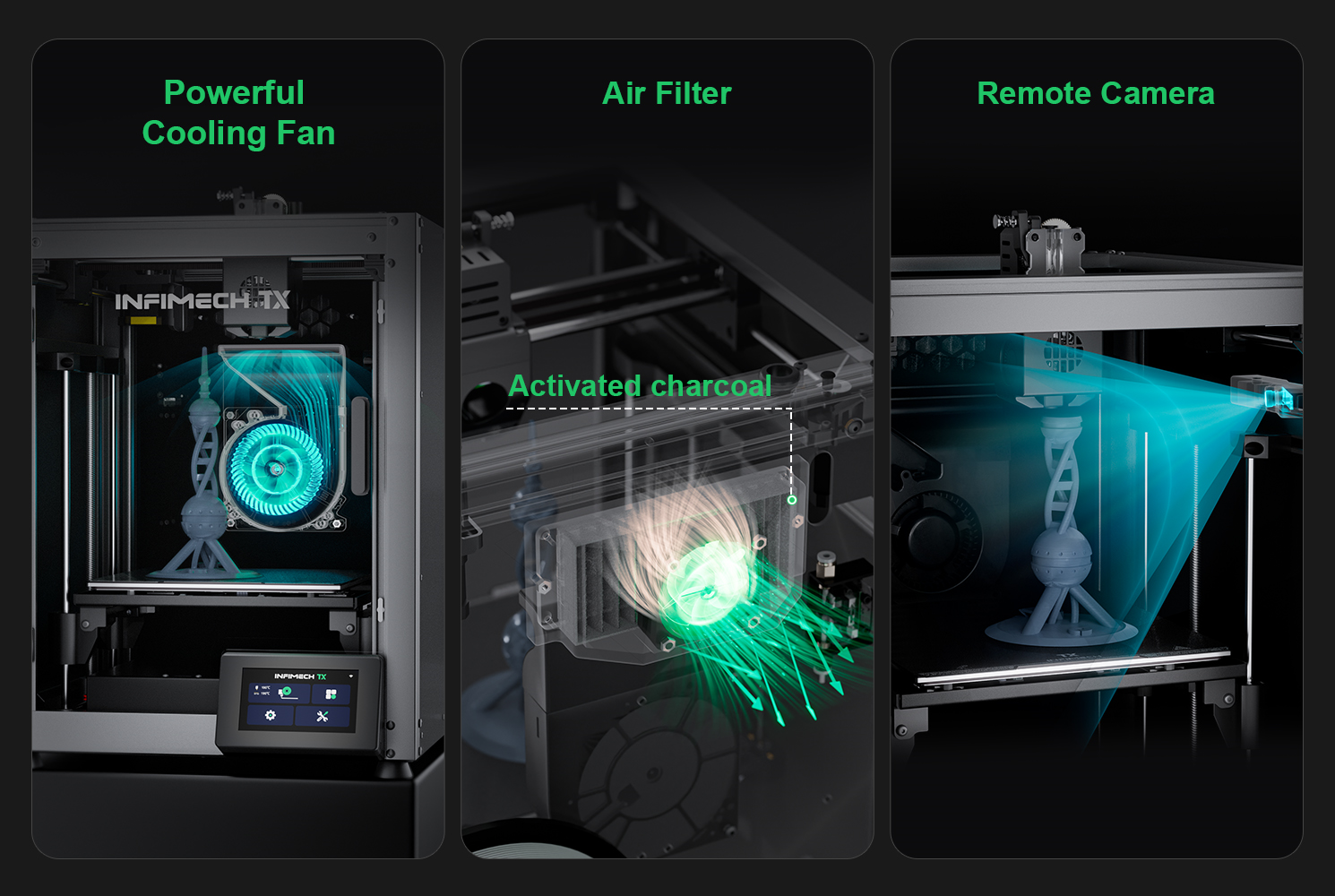

Assist accessories
- Remote Camera:Monitor and capture printing moments.
- Air Filter:volatile organic absorbed,worry-free printing.
- Auxiliary Fan:to achieve higher-speed&quality printing.
TX Tech Specs
Printing Size:
220*220*250mm³
Hotend:
All-Metal
Nozzle:
0.4mm
Hotend Max temperature:
300 ℃
Heatbed Max temperature:
120 ℃
Print Max Speed:
500mm/s
Print normal Speed:
200-300mm/s²
Material Support:
PLA,PETG,TPU,ABS,PET,PVA,PC,PA,PLA-CF,PA-CF,PET-CF.
Material Diameter:
1.75mm
Printing accuracy:
±0.1mm
Mainboard:
ARM 64-bit Quad-Core
Connectivity:
USB,Ethernet,WiFi
Input File format:
STL/OBJ/GCode
Slice Software:
Orca/Prusa/Cura
Leveling Method:
automatic leveling
Language:
English,Russian,Chinese
Operating System:
Win XP/7/8/10/11/Mac OS
Power Requirements:
100-240 VAC,50/60 Hz,350W power supply
TX Dimensions:
364(W)*374(L)*470(H)mm,Net weight 15.5kg
Package box:
500(W)*500(L)*590(H)mm,Gross weight 20kg

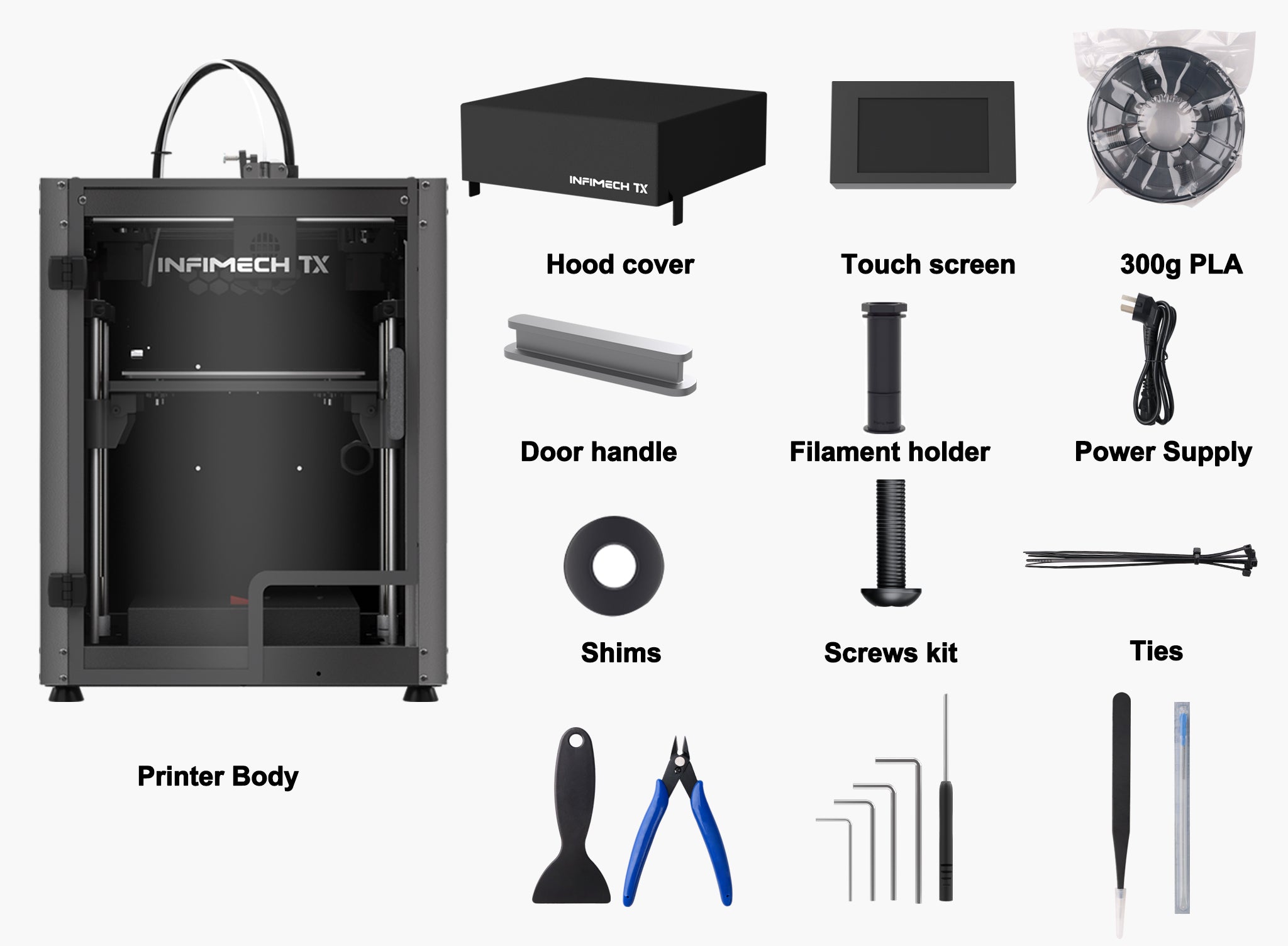

What's in the Box
M
I'm pleased with my TX. Right out the box print quality was considerably better than my previous printers and much faster. I like that they don't lock down their version of Klipper. A few things I don't like are the rear-mounted spool holder, rear mounted filament runout sensor, and 180 degree door hinges. I've designed my own 270 degree hinges and side mounted filament holder. I'm considering relocating the runout sensor - perhaps inside the enclosure. I would also like to see presets for more types of filaments. But all these are minor issues. I hope to see ongoing updates and upgrades for the TX.
E
I have not received my machine, and the FedEx tracking number only shows status "label created" this whole time.
I already have one Infimech TX, and I like it very much, especially for the price.
J
Well I wasn’t sure at the price but after I used it for a week straight and had zero failed prints, my Bambu P1S got sent back! I also ordered the accessories for the TX so I will see how that goes. Things I love, power switch and usb location, the lighting! Omg so bright, the display and layout are perfect, WiFi is faster than all my other printers and speed! This printer is fast and produces beautiful prints and it’s basically quiet. I need to buy another before the price goes up I love it so much.
R
Infimech TX High Speed Printing 3D Printer US EU Free Shipping
S
Really good machine for a unbeatable price! I like it. Top!!!
