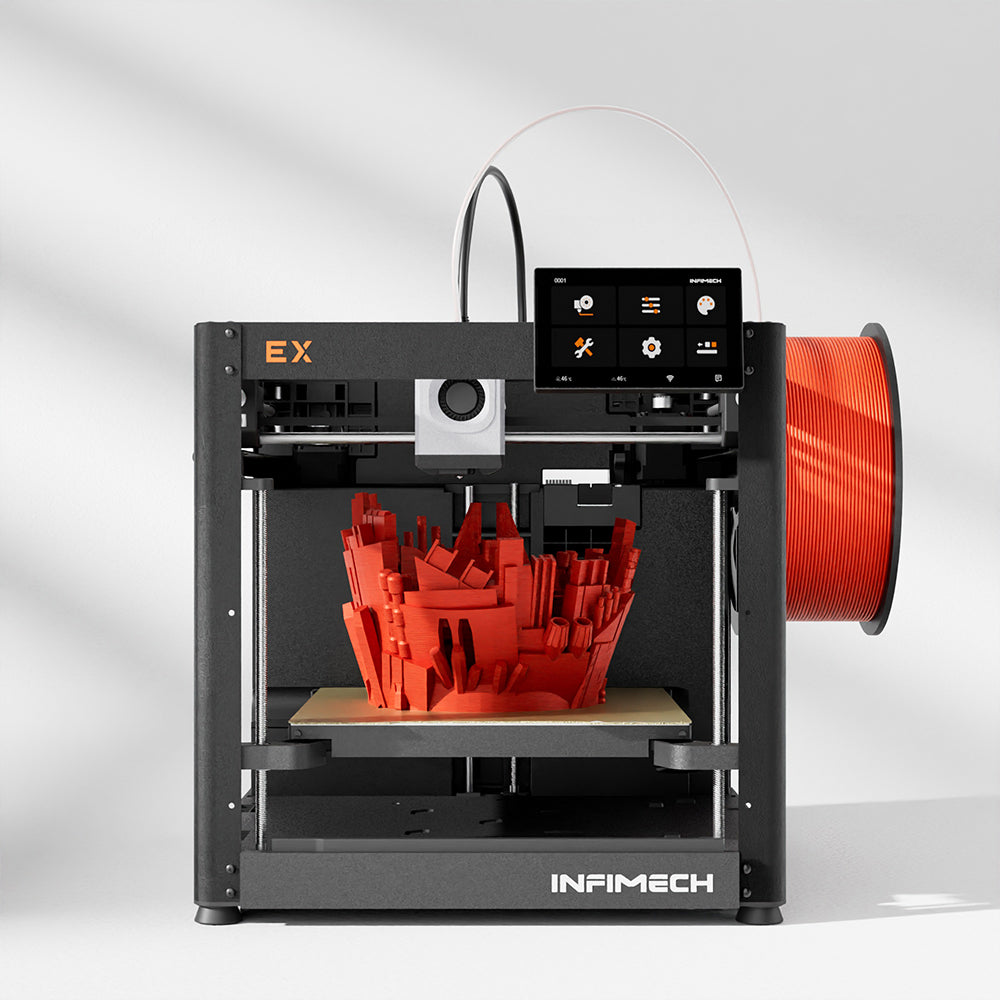

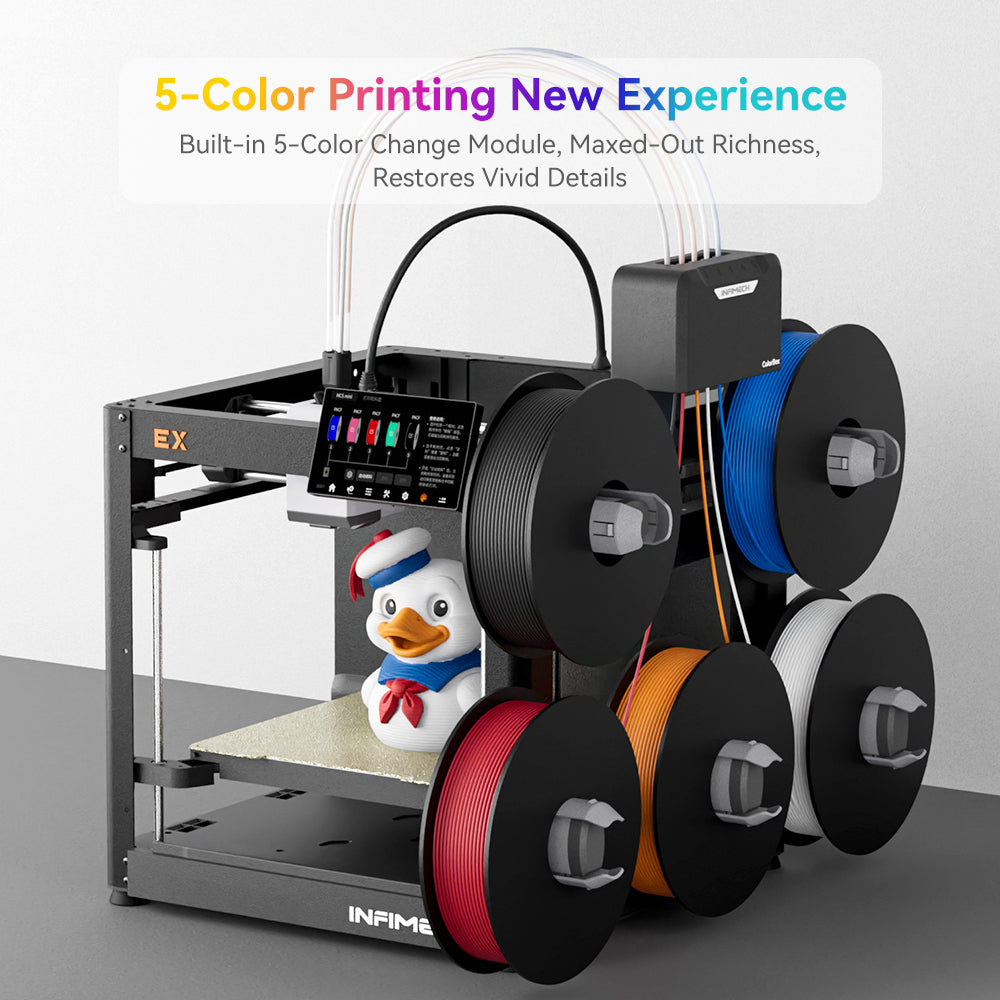

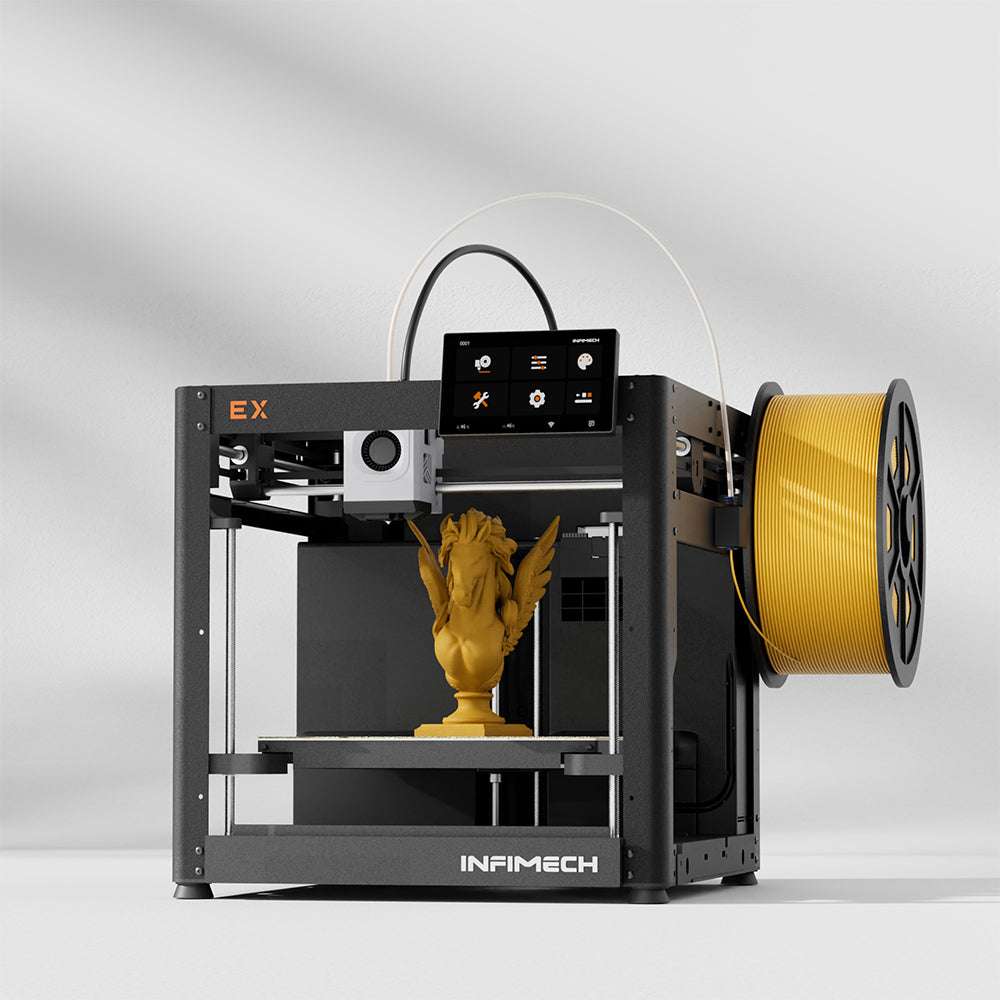

InfiMech EX 5-Color 3D Printer – Power Meets Precision

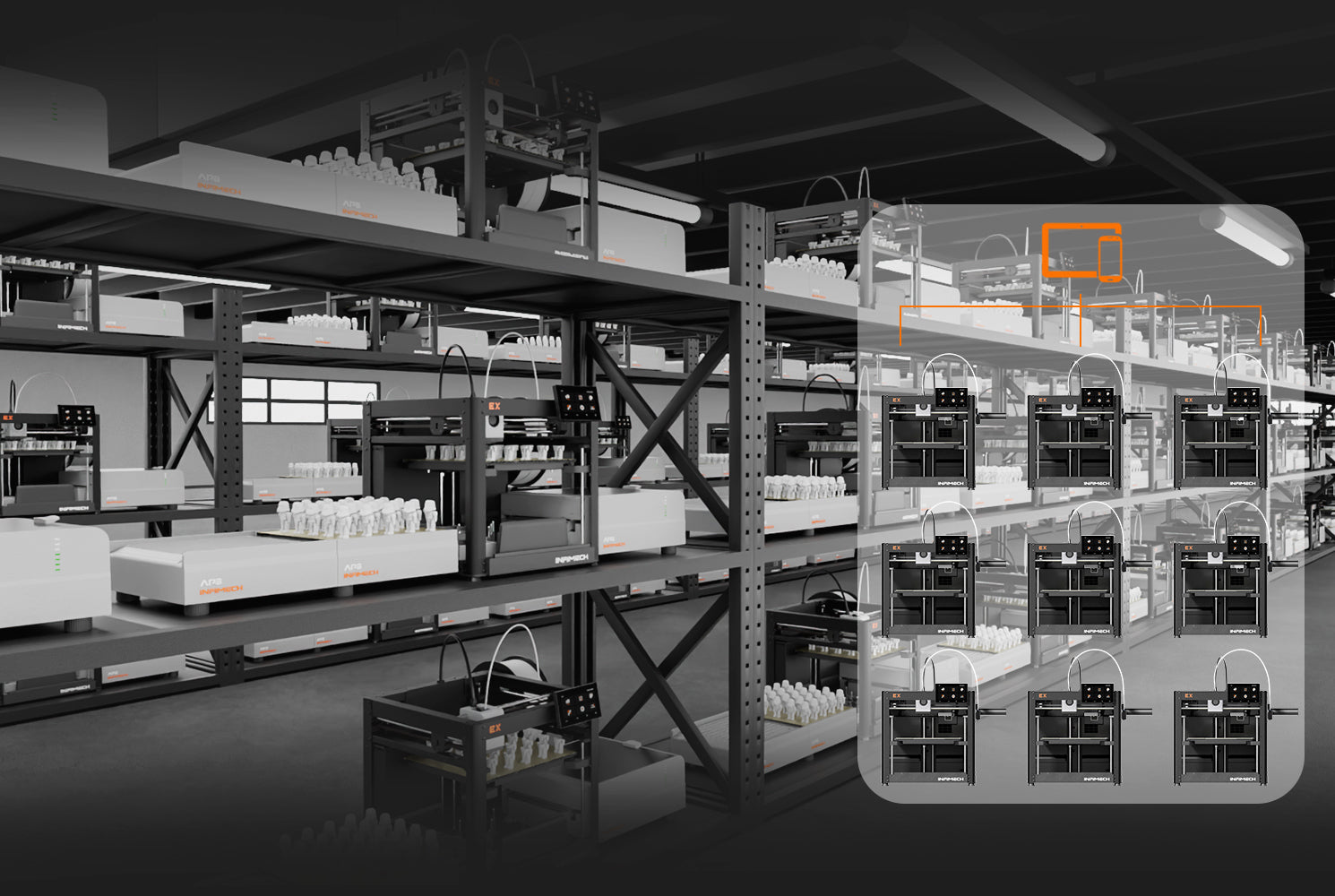

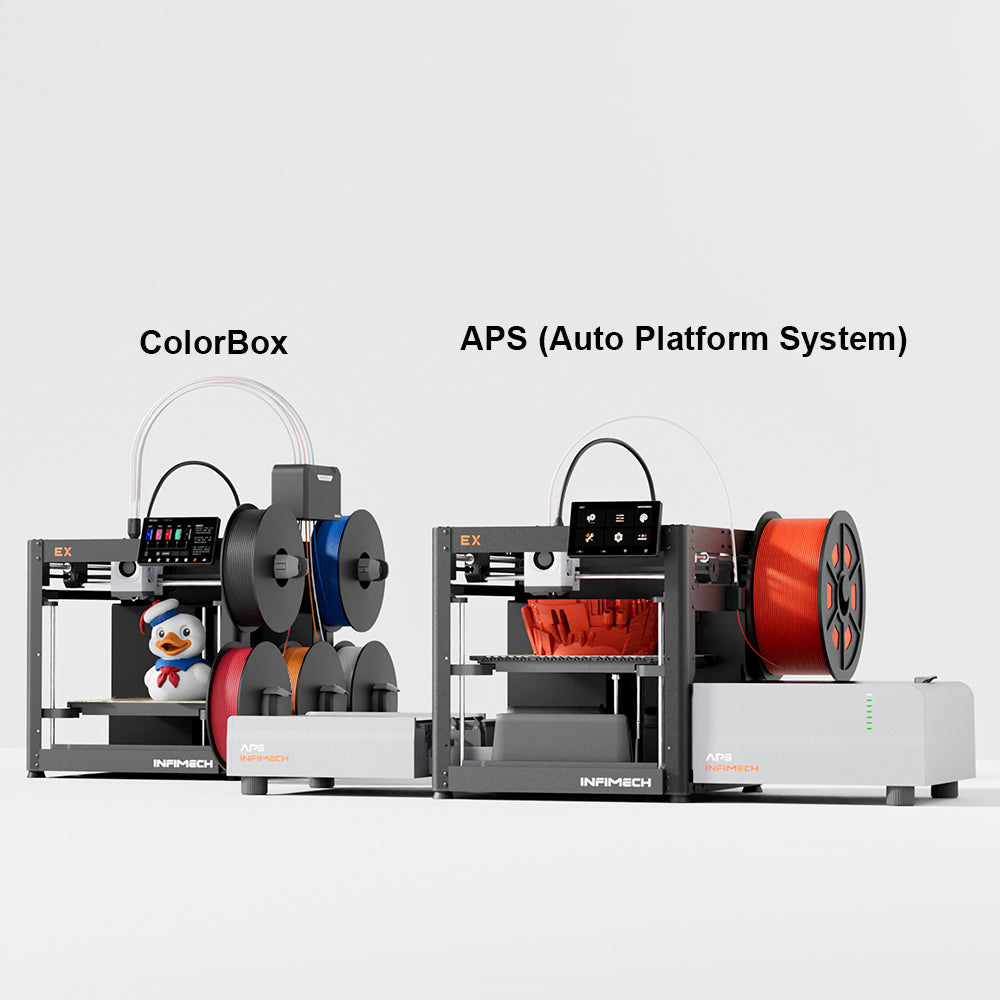

3D Print Farming: Work Less, Output More
- Batch deployment cuts idle time.
- Auto-collection frees up staff.
- Cluster control boosts efficiency.

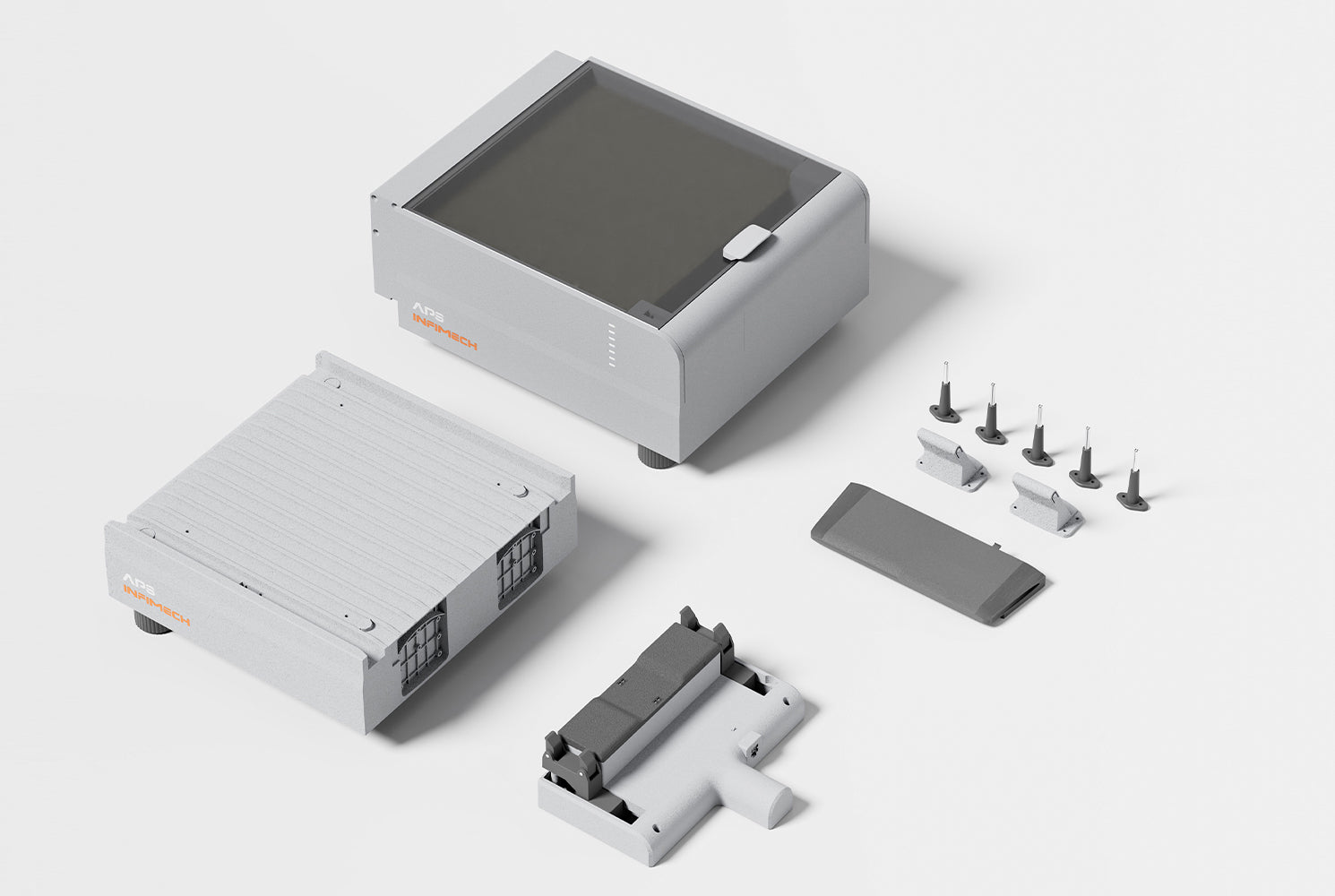

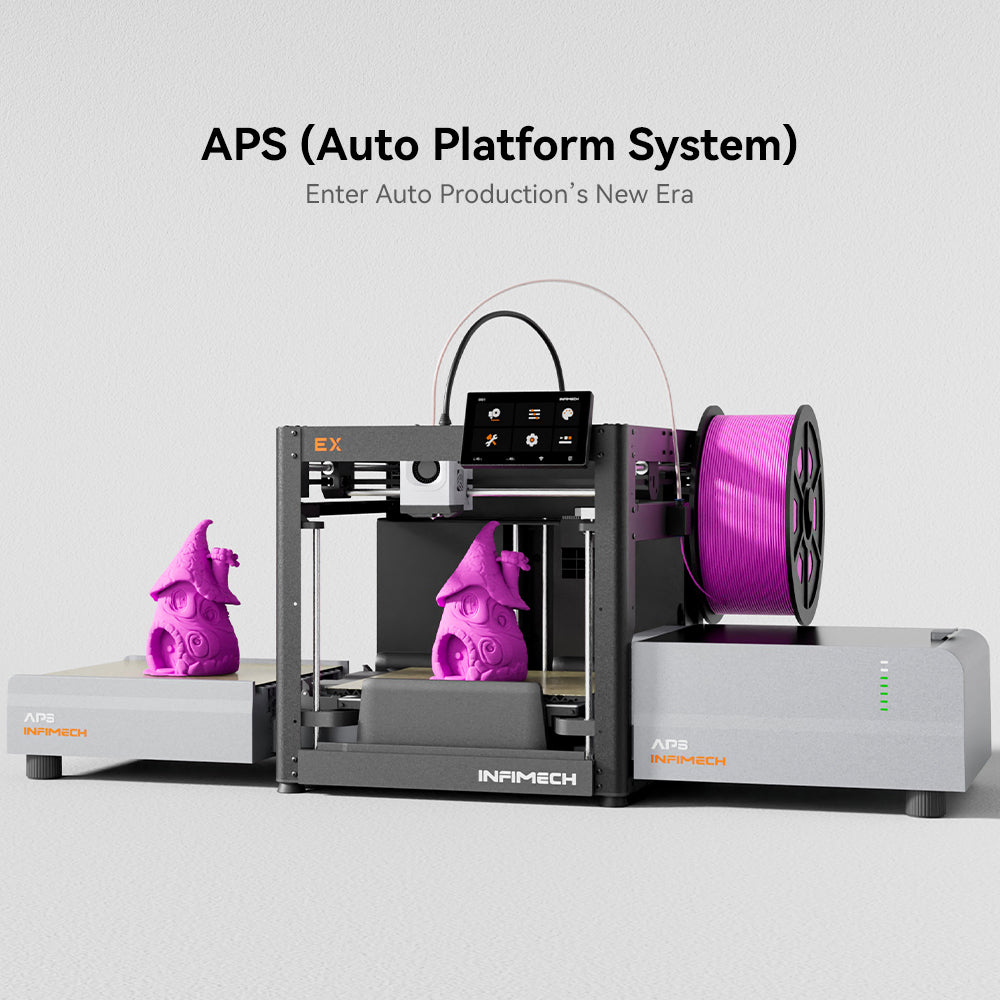

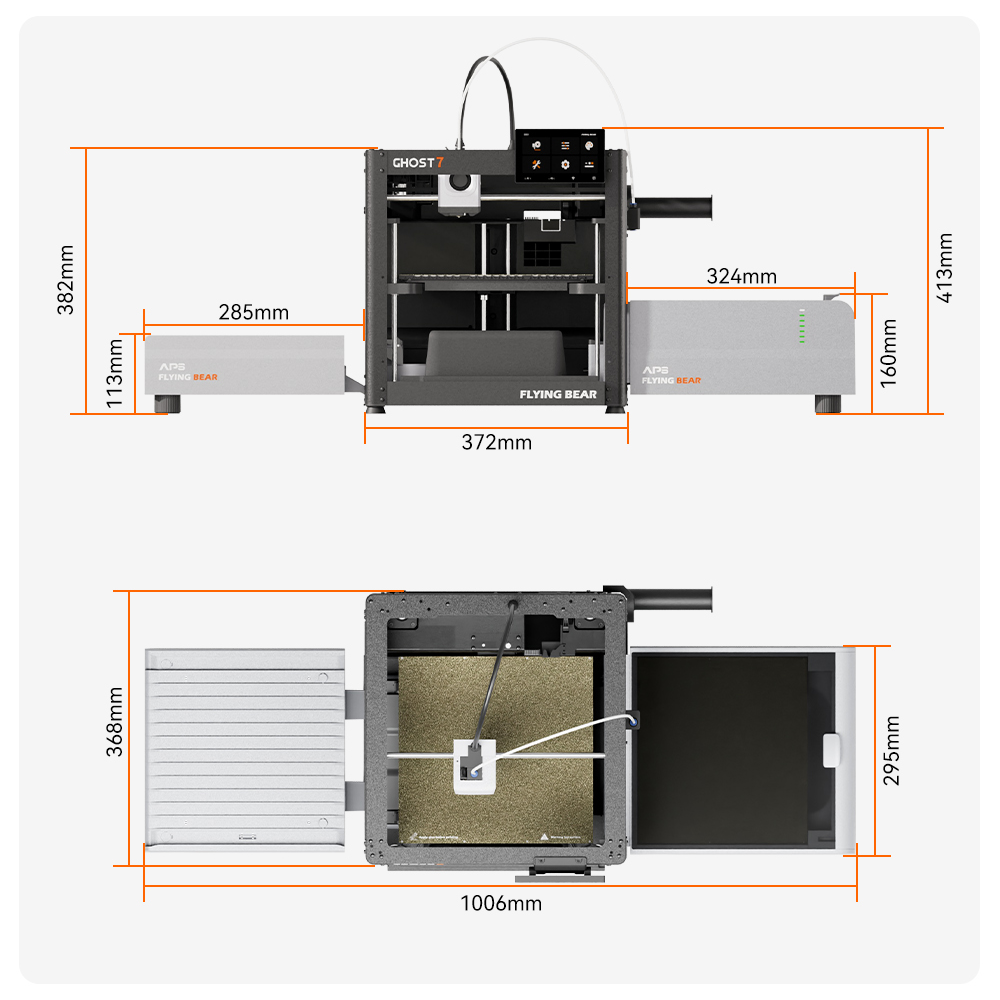

APS for FlyingBear Ghost 7
- Complete set of core components for immediate operation.
- All parts are included and pre-configured for easy setup.
- Enables quick, tool-free installation in just a few steps.

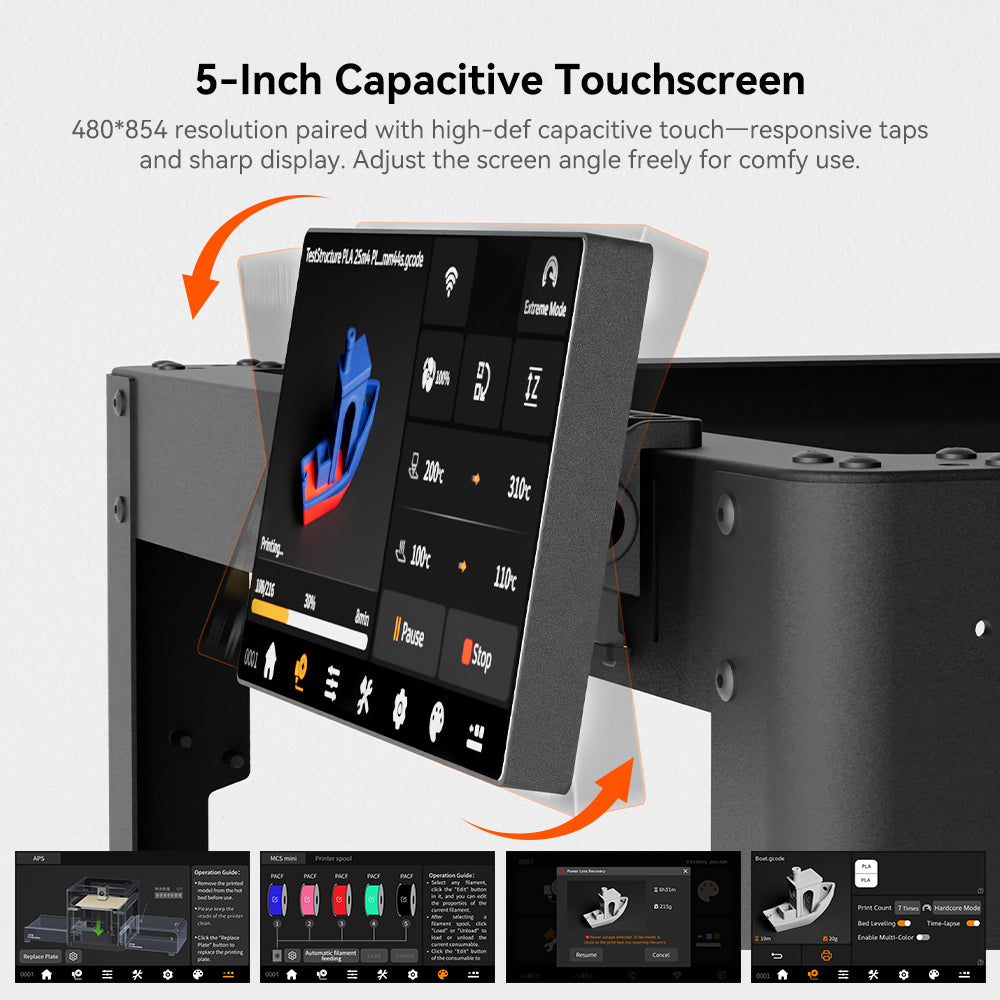

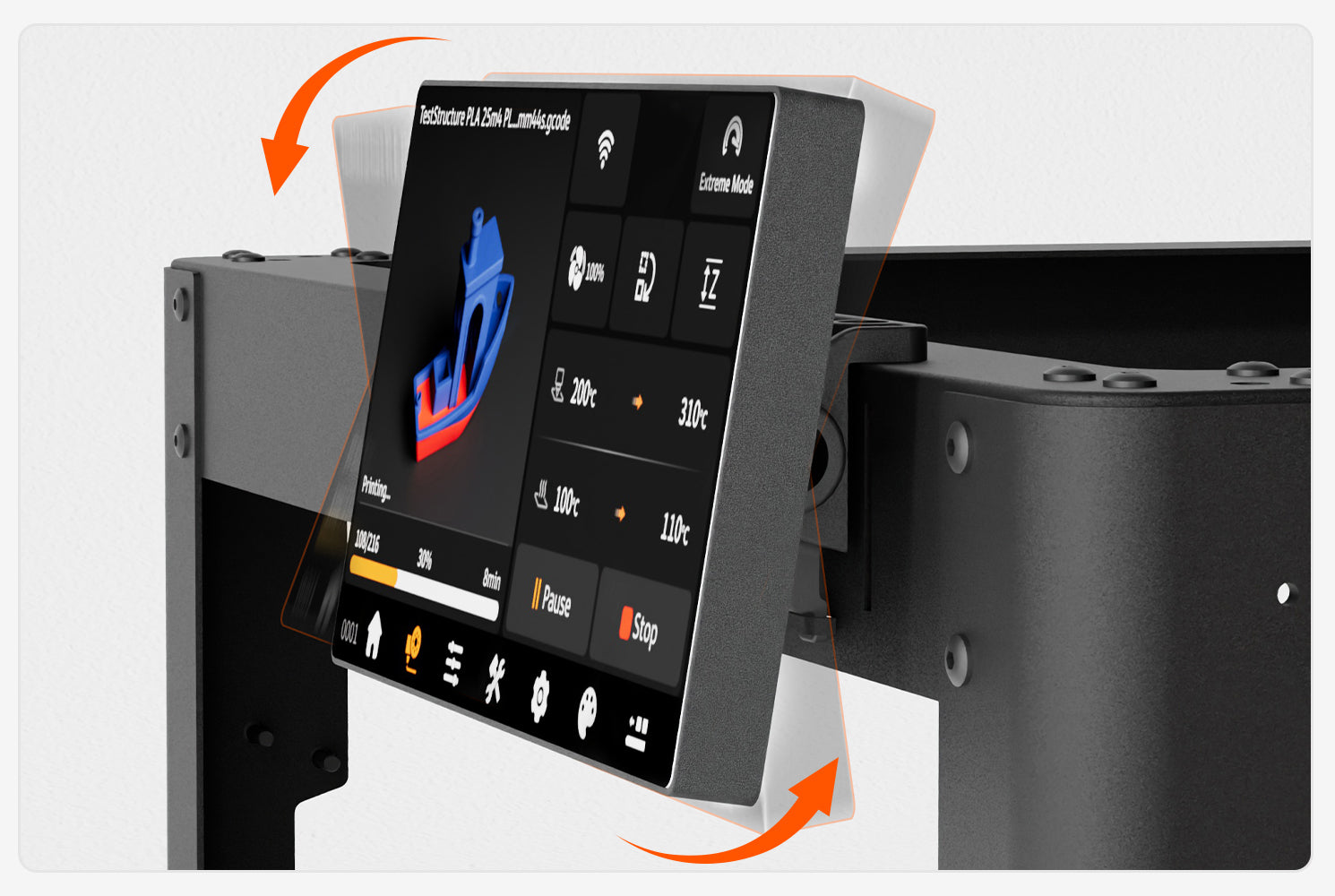

5-Inch Capacitive Touchscreen
- 5-inch capacitive screen supports multi-touch for smooth operation.
- The screen angle is freely adjustable for a comfortable view.
- Simple and intuitive UI allows for easy use without a learning curve.

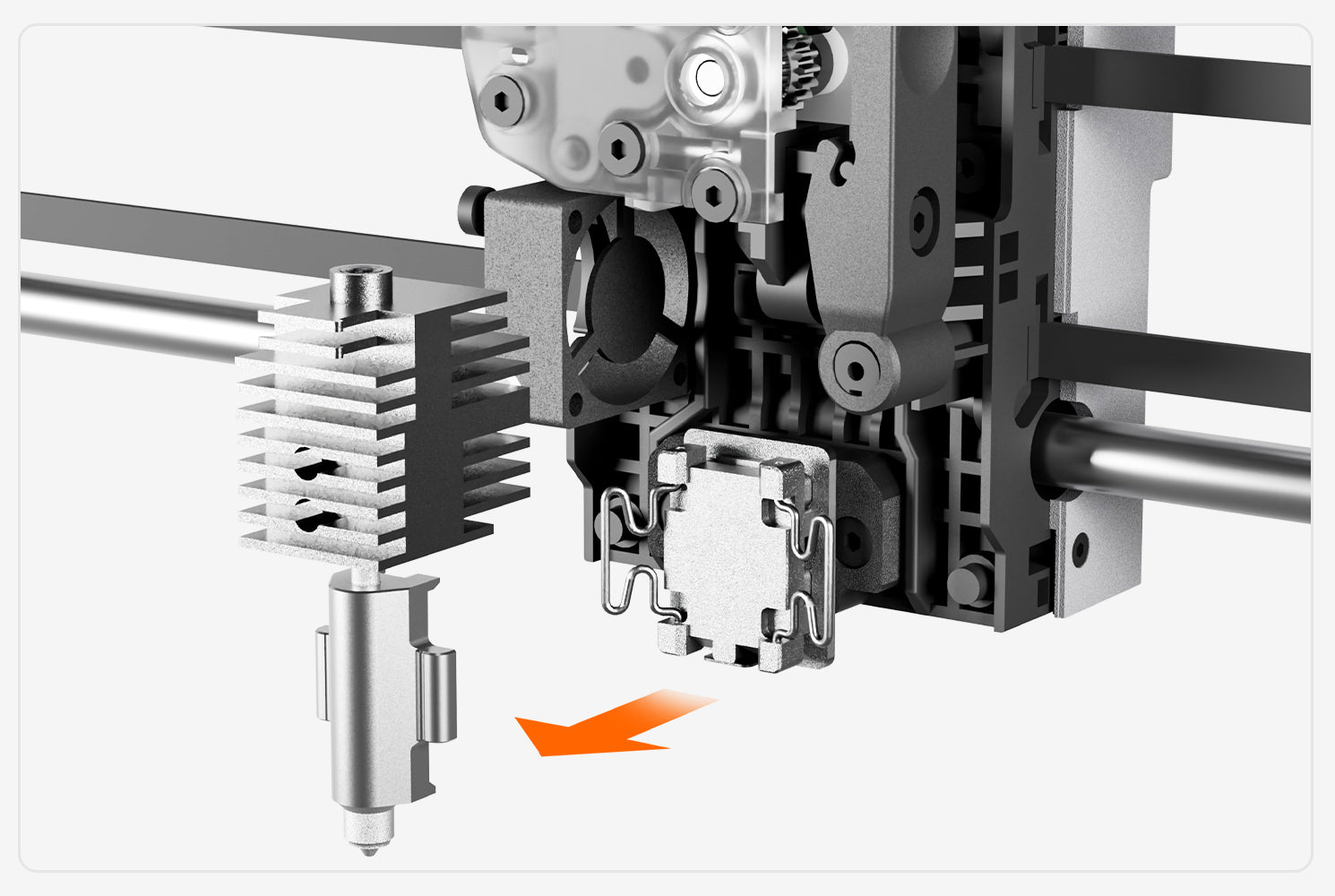

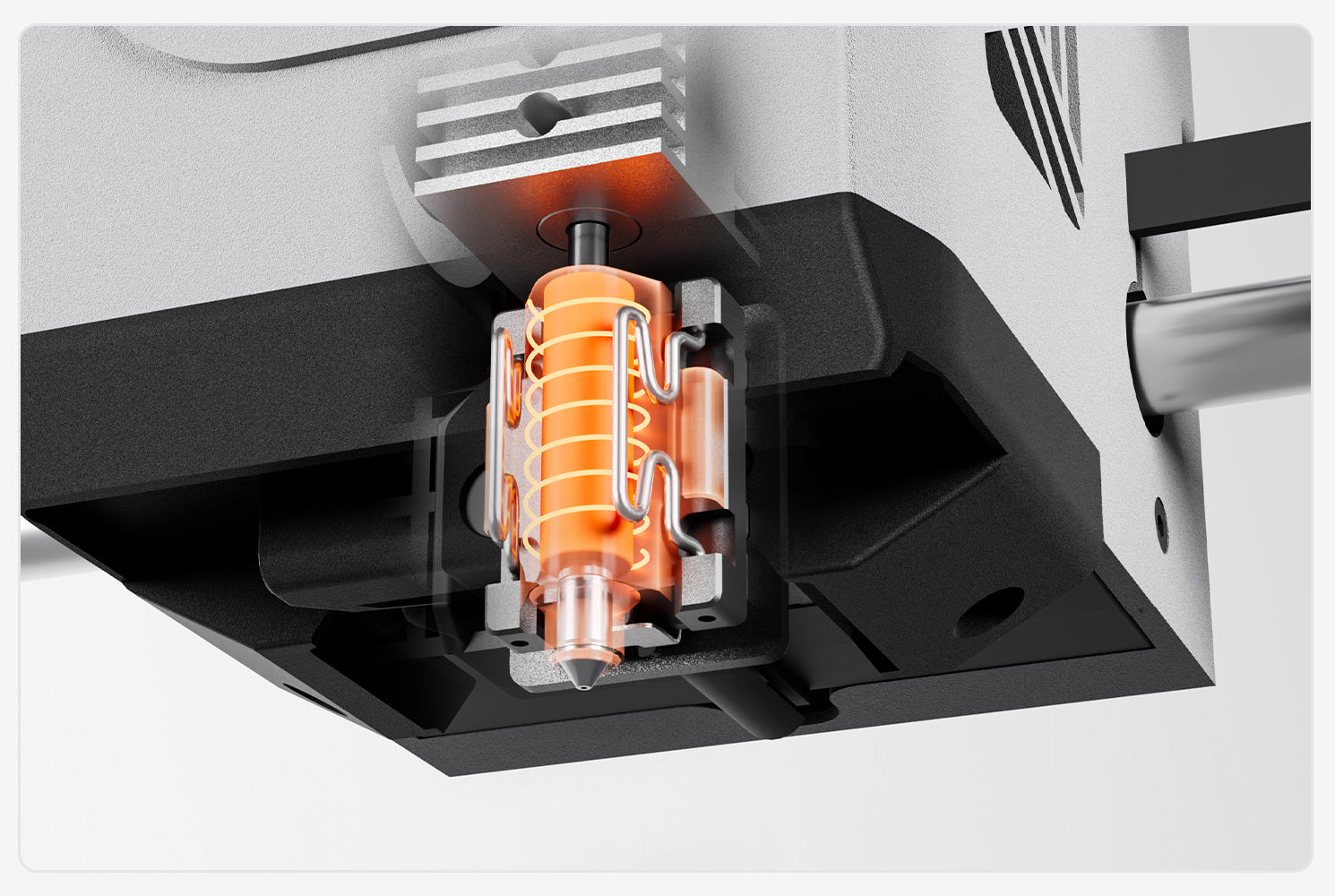

Quick-Release Hotend Design
- No tools or professional skills required; disassembly and assembly can be done by hand.
- Streamlined process significantly reduces the time required for nozzle replacement.
- Facilitates quick cleaning and clog removal, enhancing daily equipment maintenance efficiency.

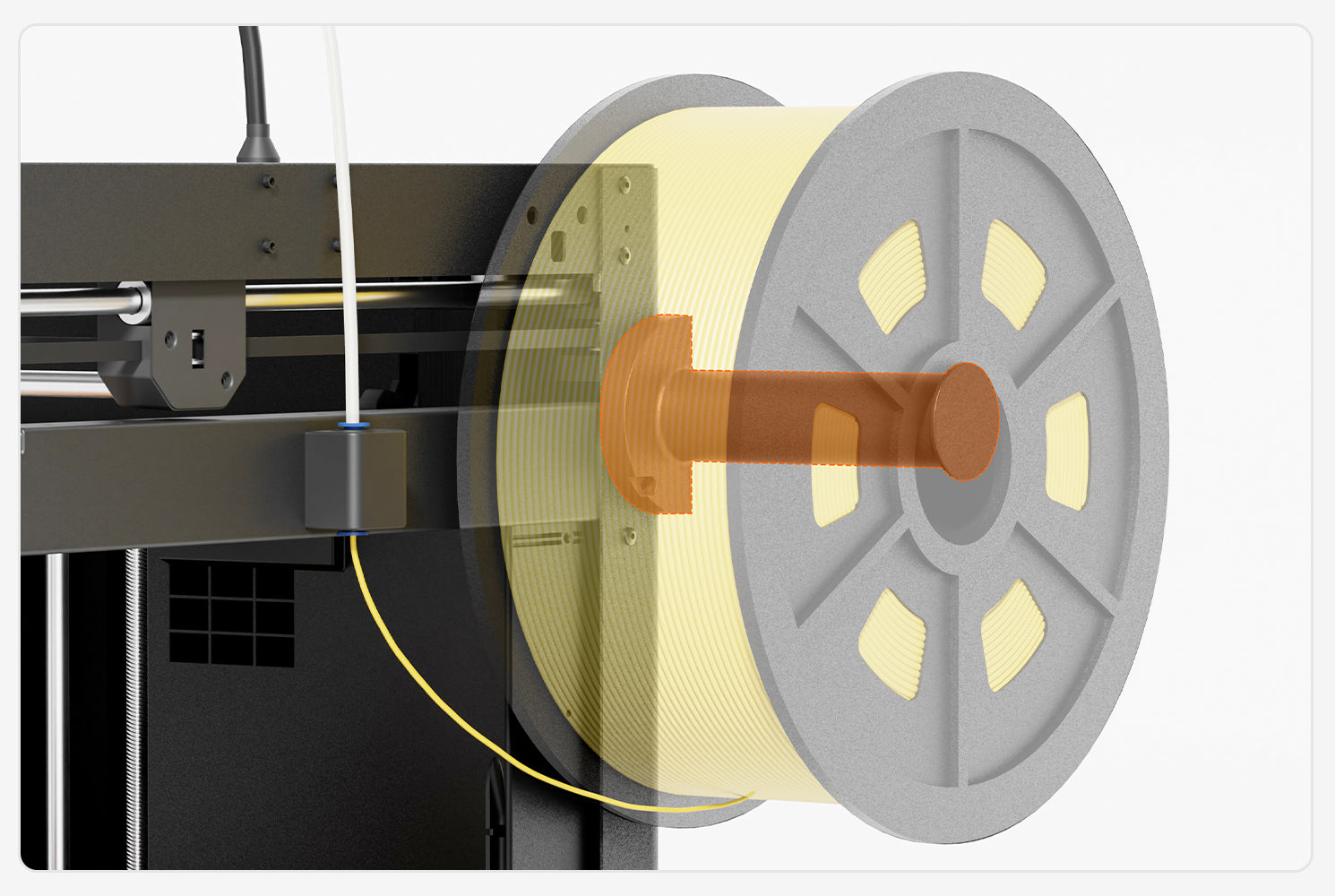

3KG-Capacity Filament Holder & Filament Tangle Sensor
- Holds up to 3kg of filament, easily handling large models and marathon print jobs.
- Eliminates the hassle of frequent spool changes, ensuring a smooth and seamless creative workflow.
- Monitors filament status in real-time and alerts instantly upon detecting tangles or snags.
- Pauses print automatically upon detection, effectively preventing material waste and print failures.
- No need for constant user monitoring, enabling a truly worry-free and automated printing experience.

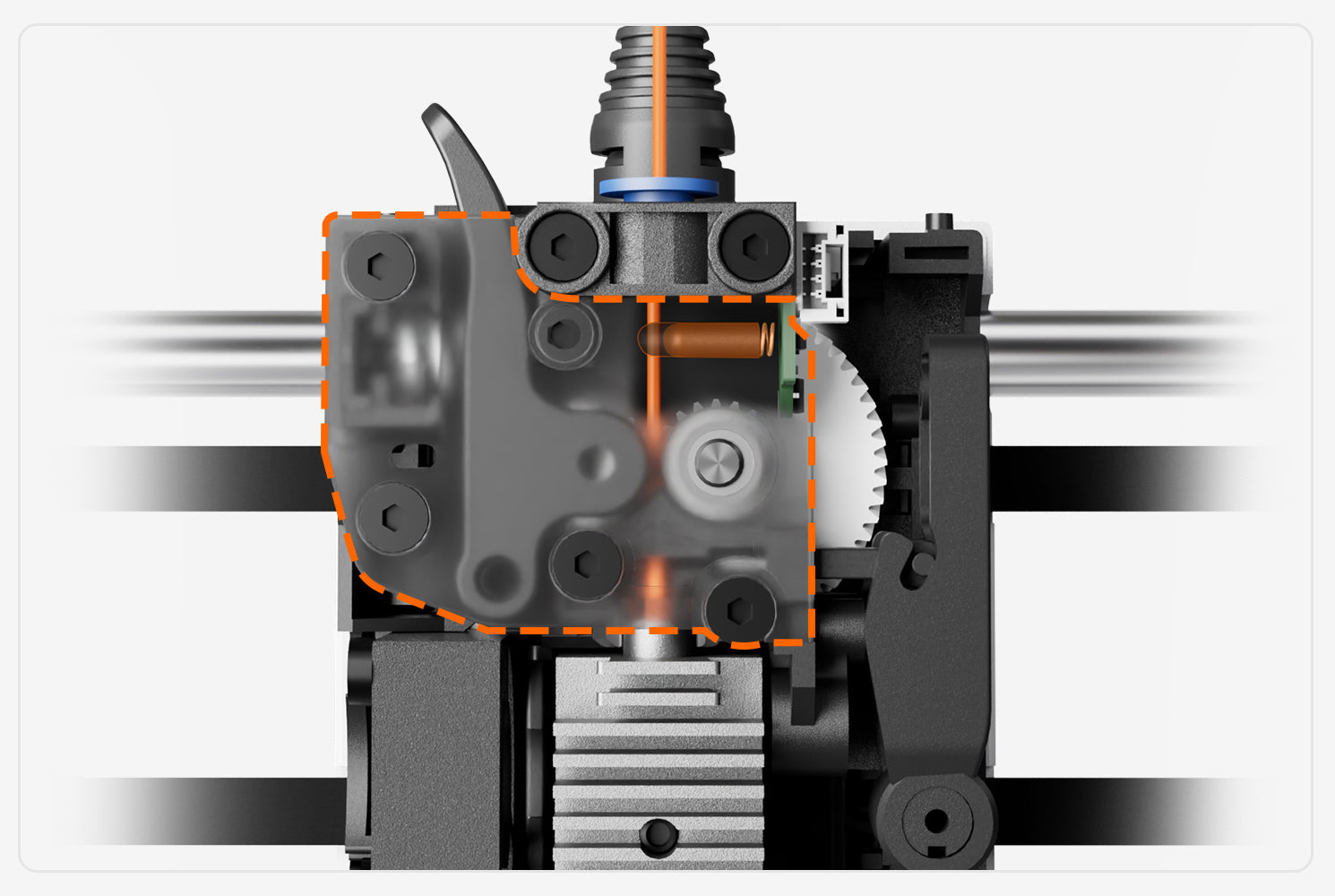

Filament Runout Sensor & Transparent Extruder Design
- Instantly detects filament breaks or runouts and pauses printing, preventing empty printing to avoid model ruin and material waste.
- The transparent PC extruder offers a clear view of filament feeding and gear engagement, enabling quick troubleshooting.
- The visual design lowers the maintenance barrier, allowing users to easily handle common issues like jams or breaks.

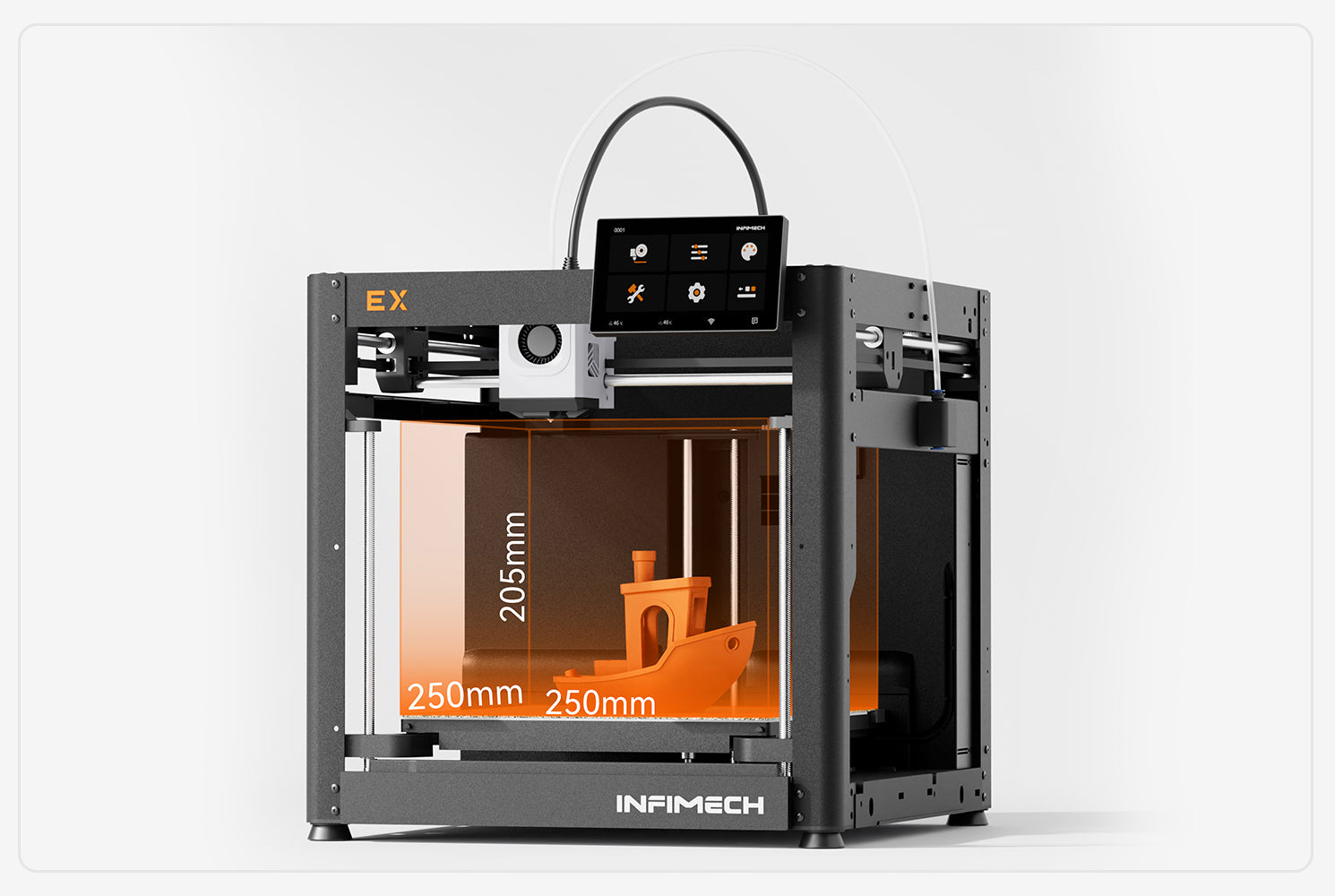

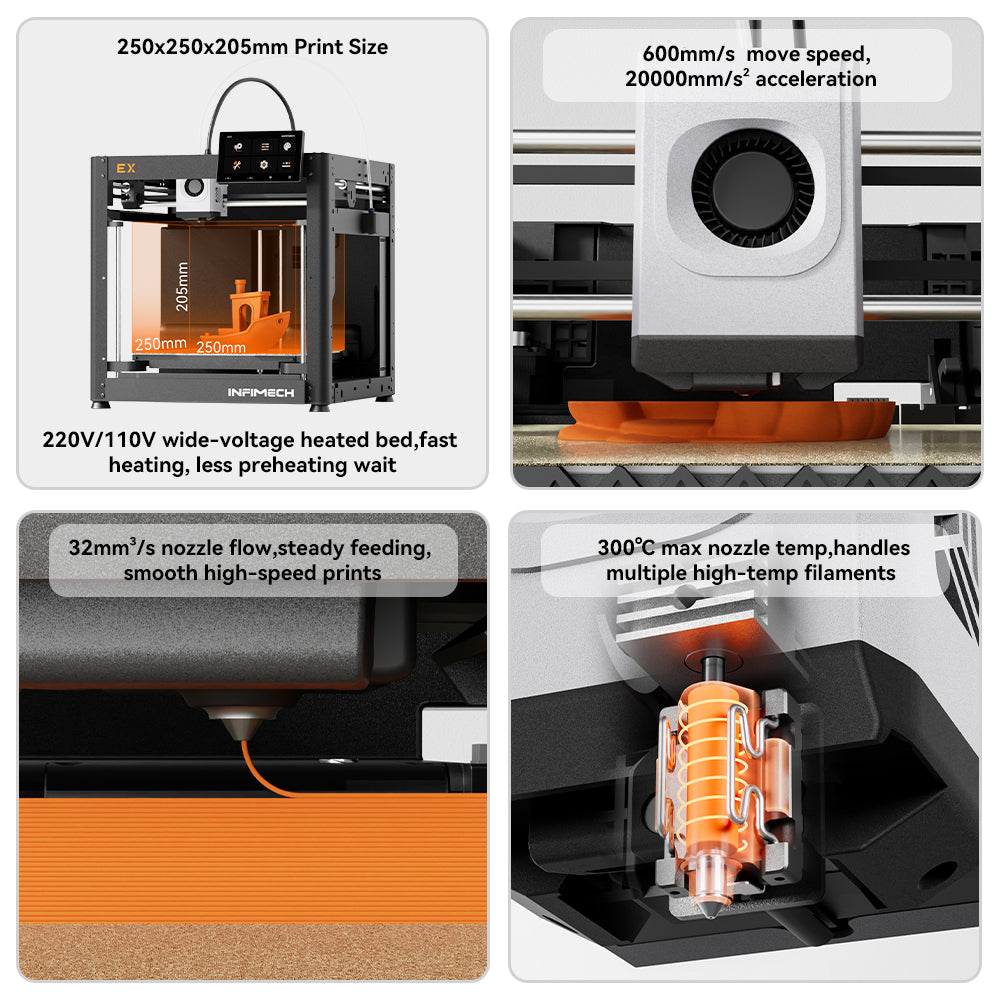

Efficient 3D Printing Redefined: Large Build Volume & Rapid Heating
- Handles small to medium models with ease, from detailed parts to functional components.
- 220V/110V system heats faster than traditional 24V beds, minimizing preheating delays.
- Combines quick heat-up with a versatile build area for seamless daily printing.
Orca Slicer Deeply Optimized
- Deeply optimized by Orca Slicer to ensure exceptional print quality and reliability.
- Remotely monitor and control your printer, APS, and ColorBox from anywhere.
- Start or pause prints across multiple printers with ease, streamlining mass production workflows.

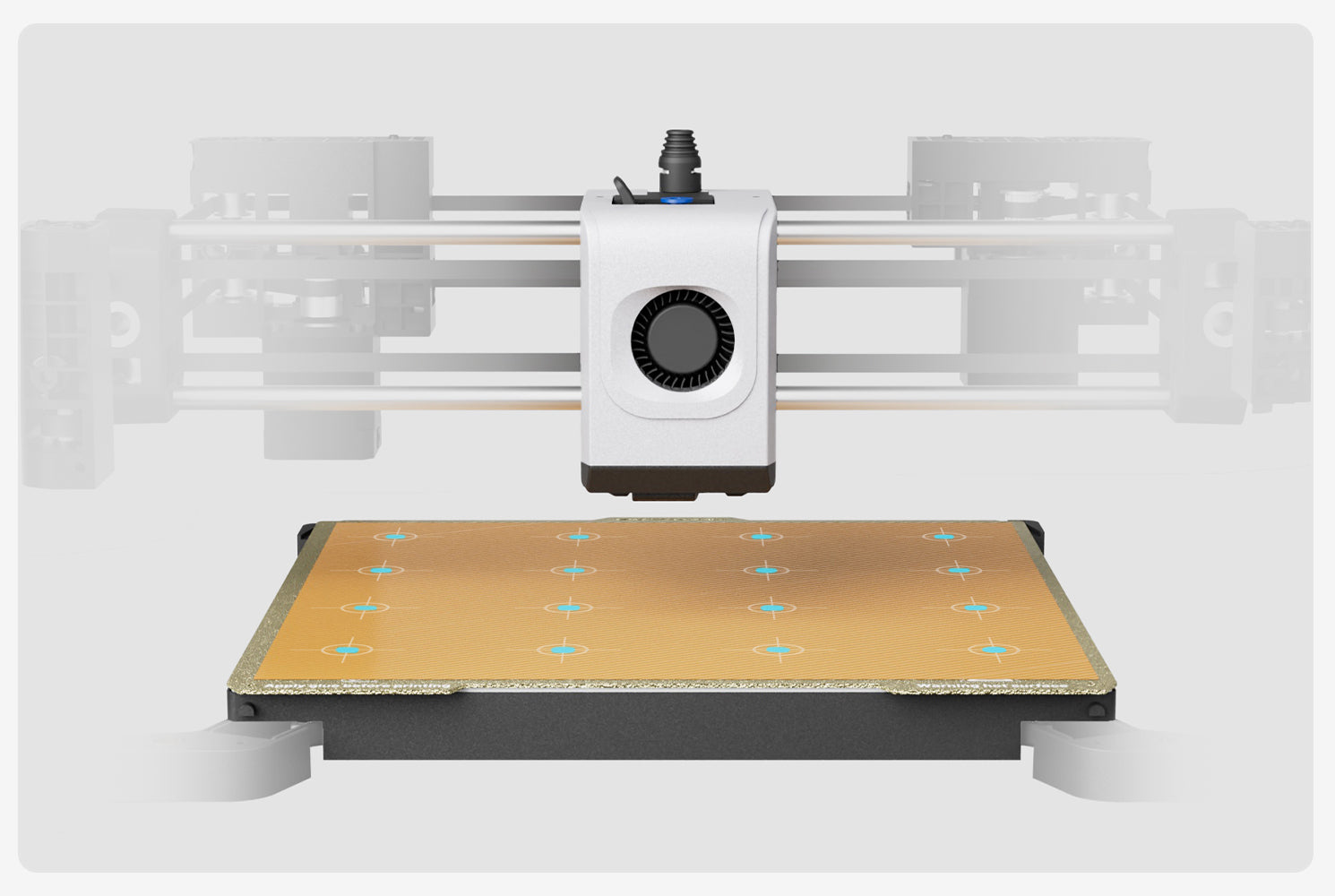

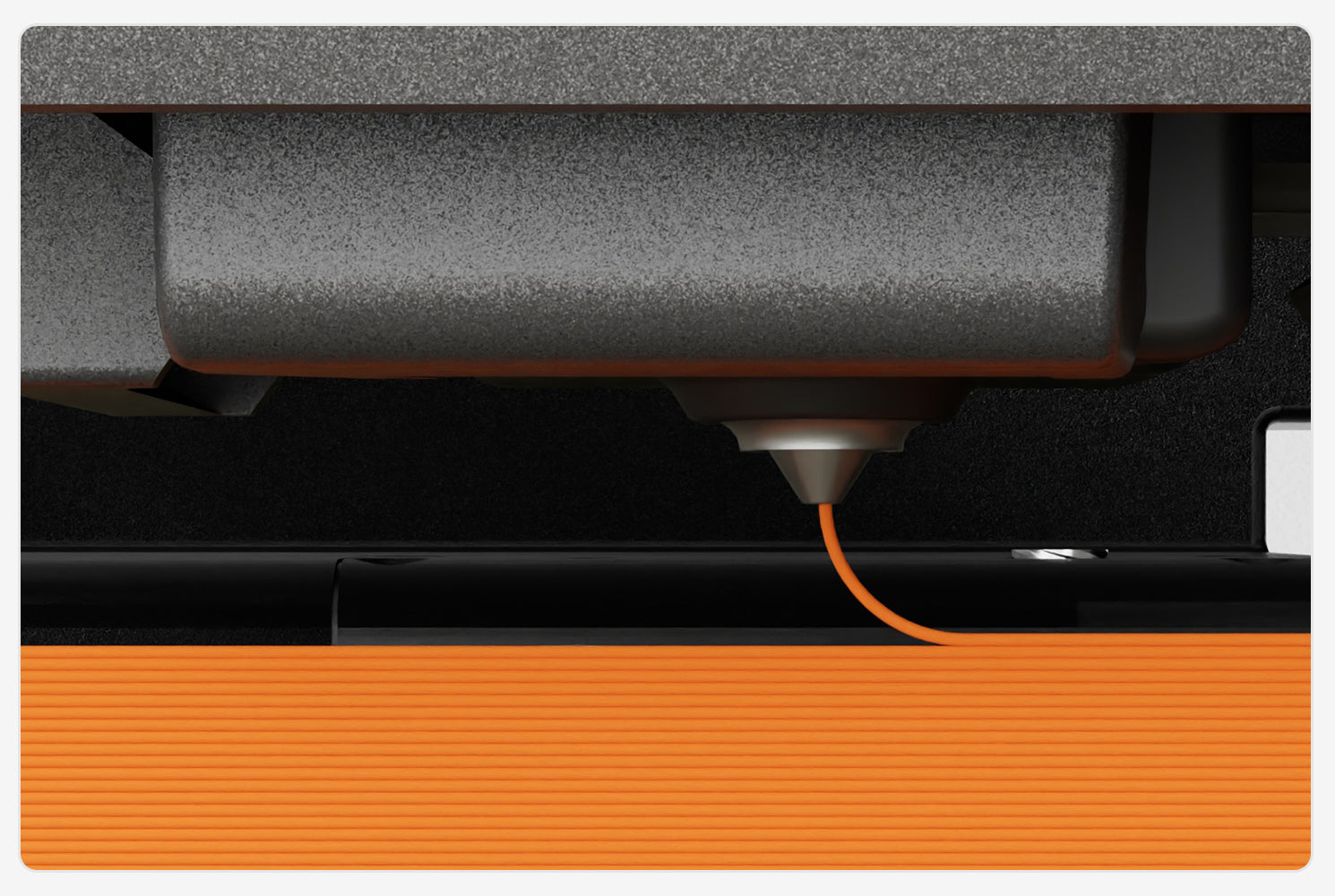

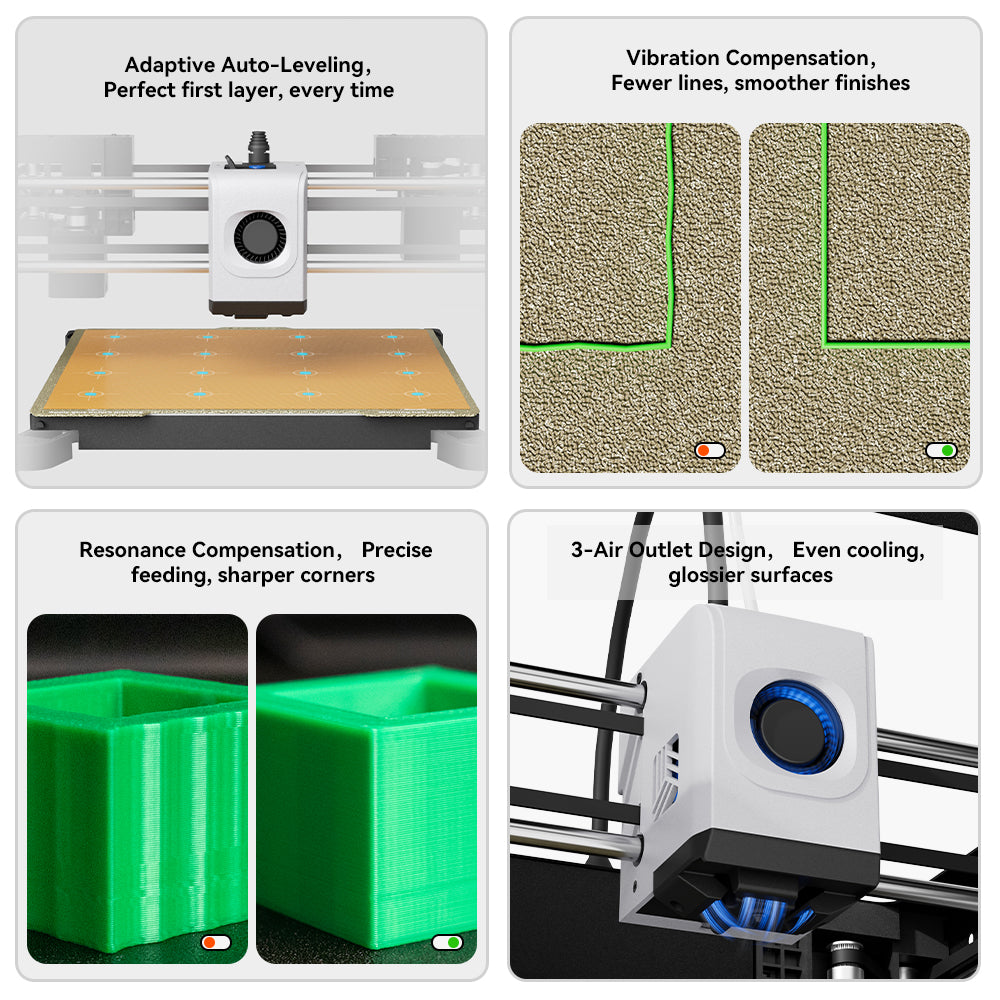

Adaptive Auto-Leveling - Perfect First-Layer Prints
- Guarantees a perfect first layer every time for impeccable print quality.
- Holds up to 3kg spools for large models and long prints without interruption.
- Eliminates frequent spool changes, allowing you to focus on complex and large-scale projects.

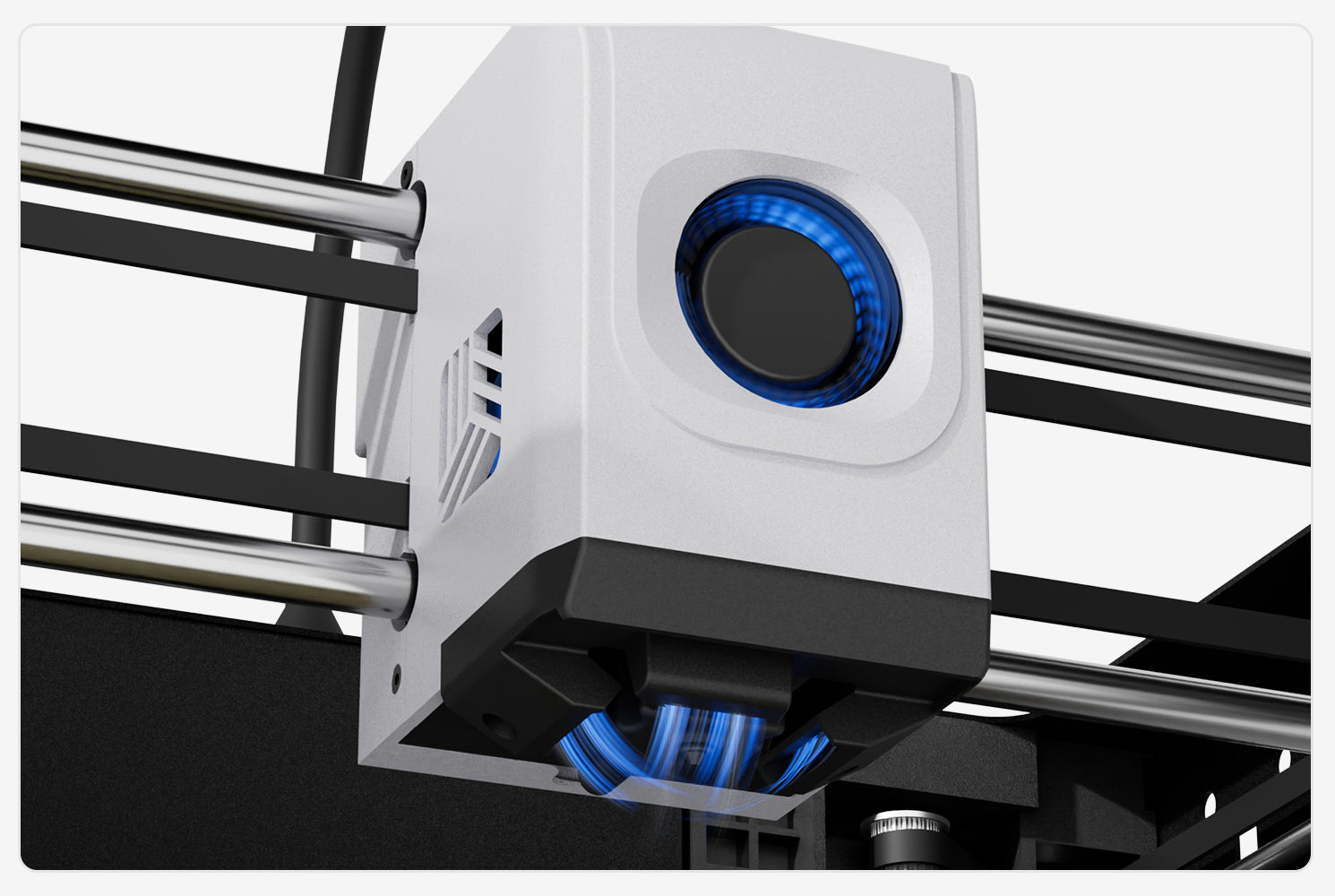

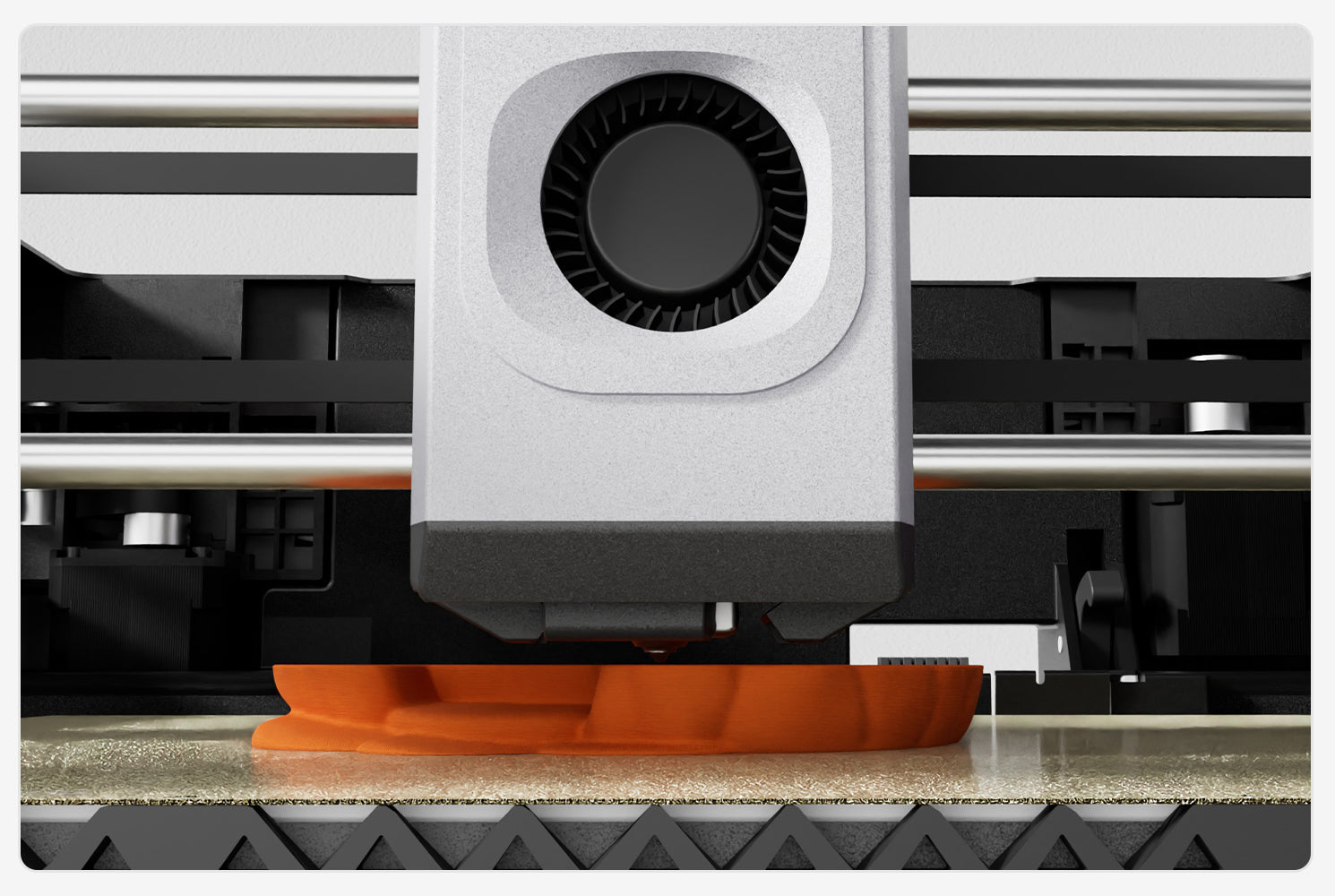

3-Way Air Outlets
- Blows air simultaneously from three ways to speed up model solidification.
- Ensures printed models have smooth and flat surfaces.
- Enhances printing detail quality with comprehensive cooling coverage.

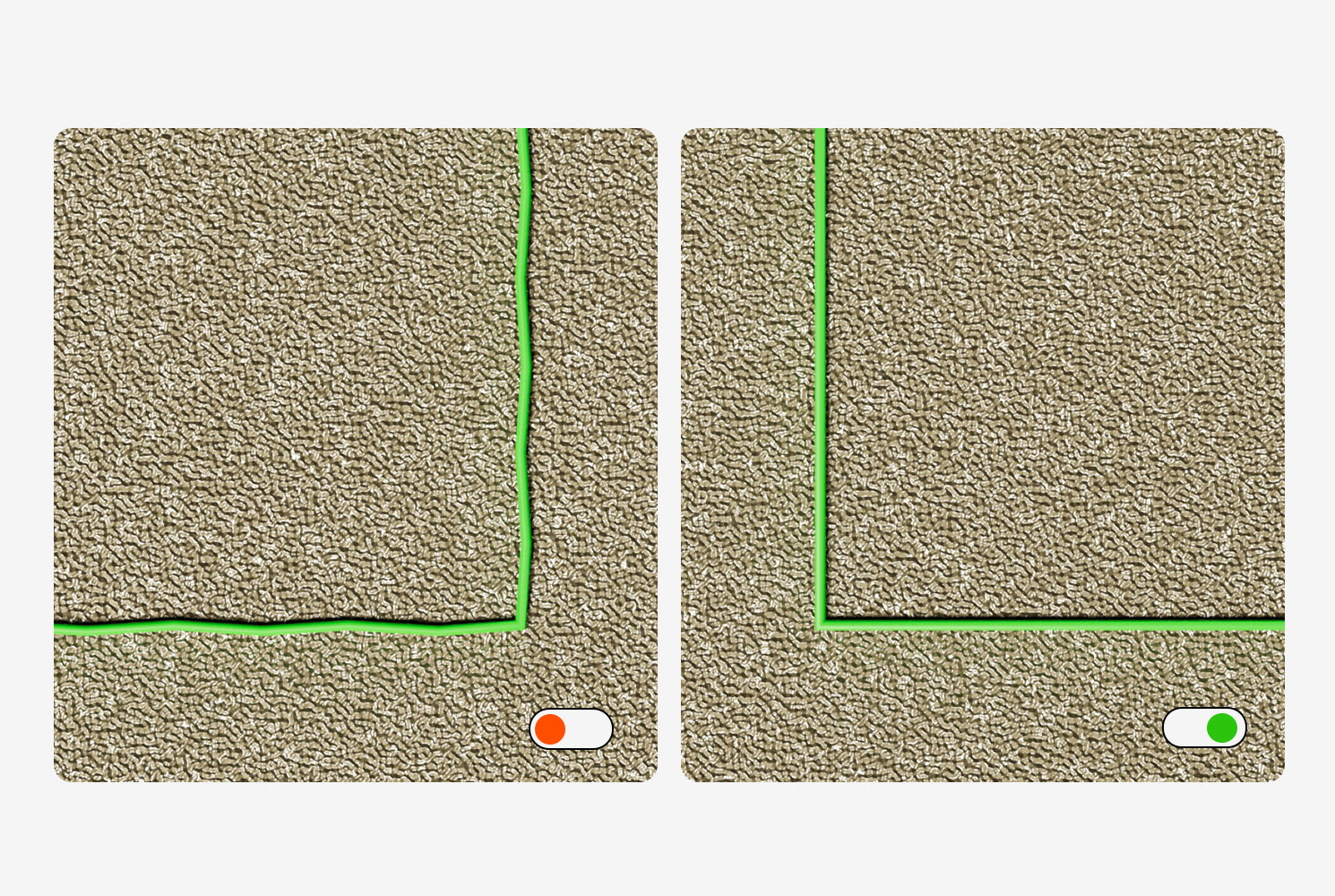

Flow Compensation
- Real-time precise extrusion adjustment based on printing speed.
- Effectively eliminates oozing and ensures sharp, clean corners.
- Enhances overall printing accuracy and surface quality.

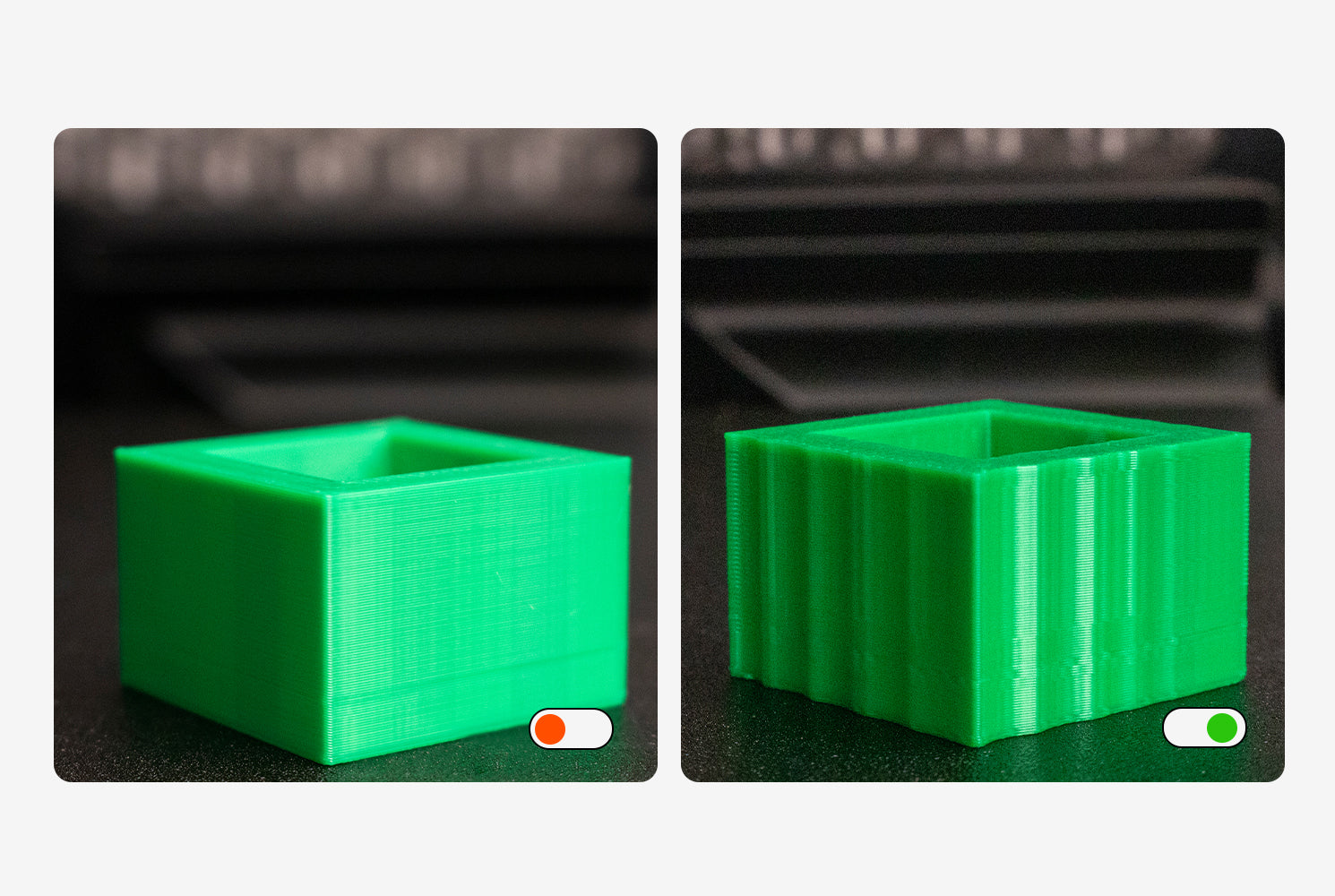

Resonance Compensation
- Built-in sensors intelligently optimize printing stability.
- Effectively eliminates vibration patterns for superior surface finish.
- Enables smooth surface quality even at high printing speeds.
600mm/s Movement Speed
- Combines high-speed printing with powerful acceleration for exceptional efficiency.
- Complete print jobs faster with significantly less waiting.
- Boost overall output with ultra-high-speed printing technology.
32mm³/s Nozzle Flow
- Ensures consistent filament feed for reliable high-speed printing.
- Specially engineered extruder mechanism optimized for high-speed operation.
- Handles rapid printing with various materials effortlessly.
300°C Max Nozzle Temp
- Unlocks a wider selection of engineering-grade materials.
- Fully supports printing from PLA to nylon composites.
- Easily handles demanding materials like carbon fiber composites.

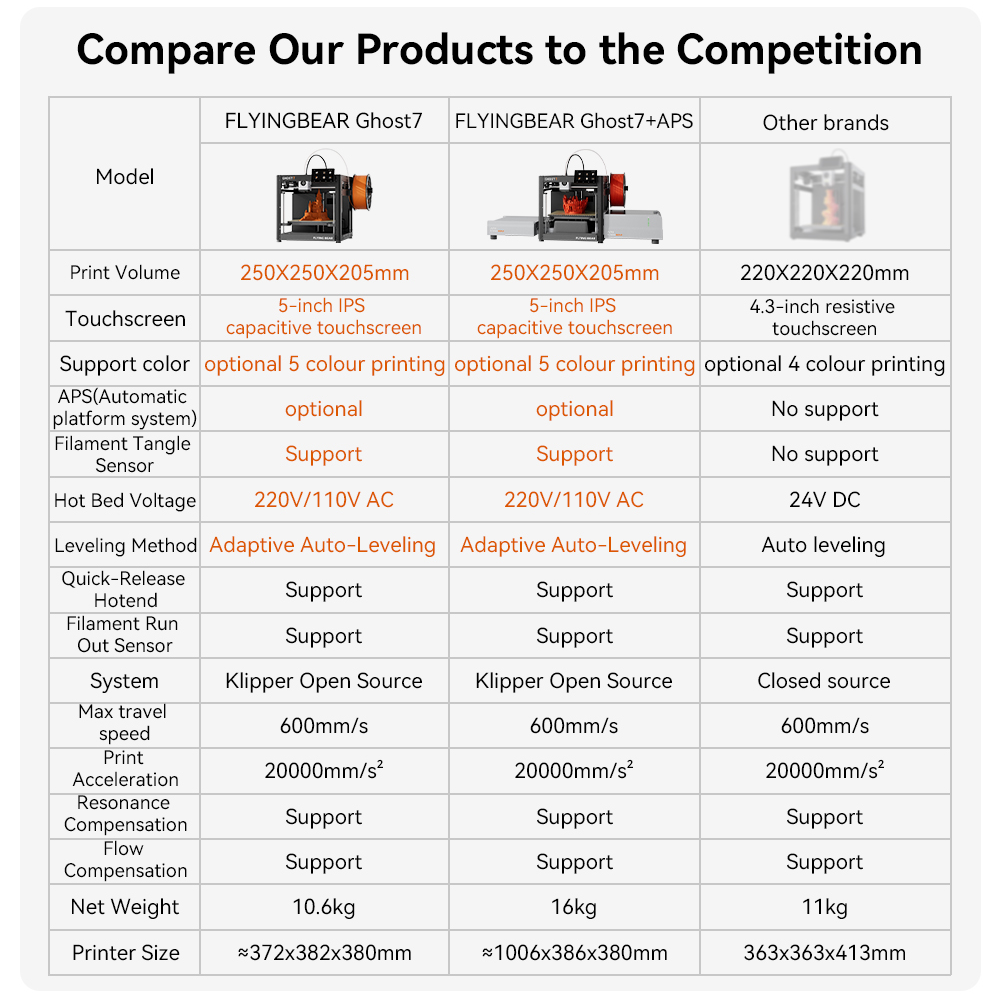

Specifications
Model
Ghost7
Printing Technology
Fused Deposition Modeling(FDM)
Body

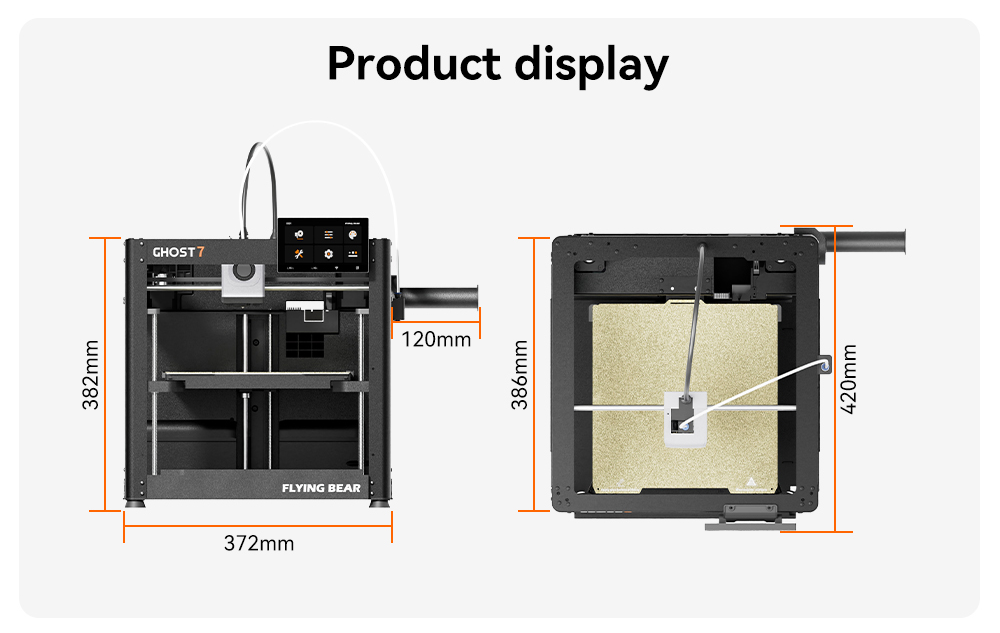

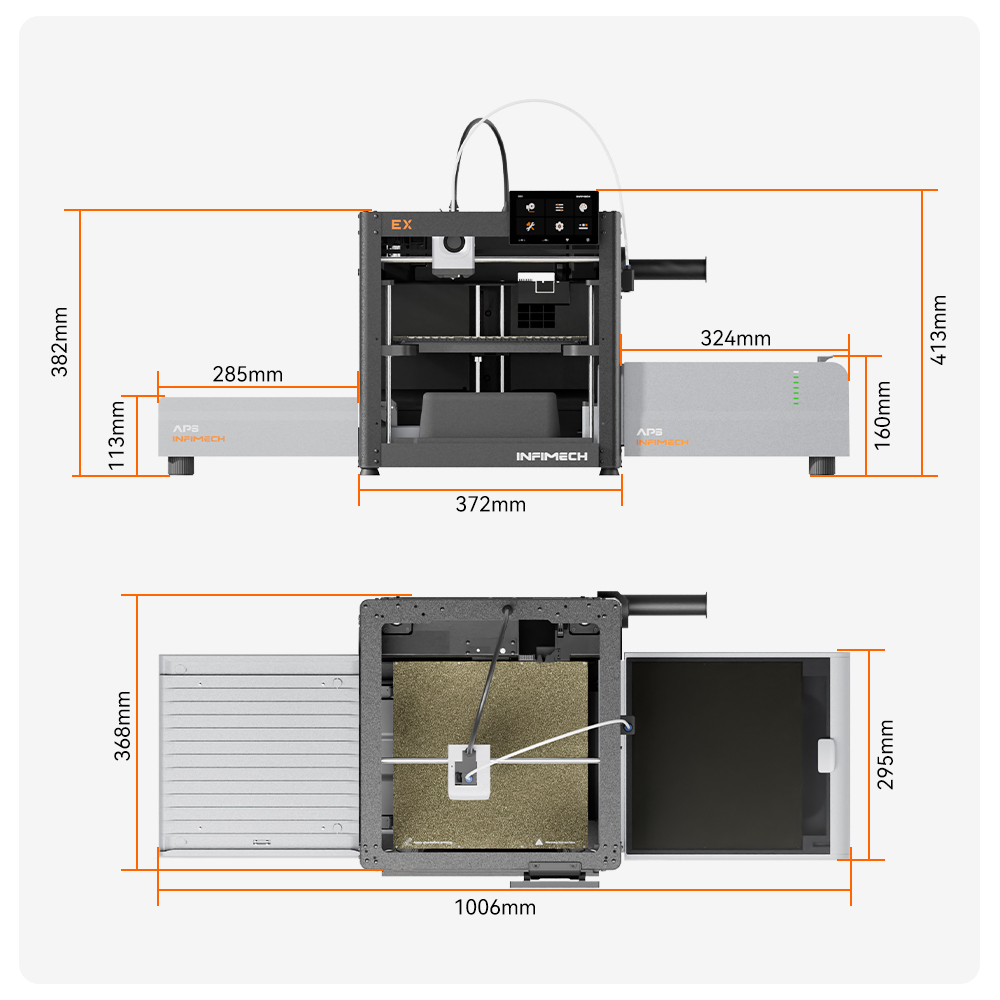

Machine Dimensions (W*D*H)
372*386*380mm³
Building Volume (WDH)
250*250*205mm³
Frame Material
Steel
Shell Material
Plastic
Net Weight
10.6kg
Toolhead
Nozzle
Hardened Steel
Nozzle Diameter (Default/Supported)
0.4/0.2/0.6/0.8mm
Max Nozzle Temperature
300℃
Quick-Release Hotend
Supported
Filament Diameter
1.75mm
Heatbed
Included Printbed
Textured Printbed
APS-specific Printbed
Textured Printbed
Max Bed Temperature
110℃
Speed
Max Speed of Toolhead
600mm/s
Max Acceleration of Toolhead
20000mm/s²
Cooling
Cooling Fan for Hotend
Closed-Loop Control
Model Cooling Fan
Open-Loop Control
Mainboard Cooling Fan
Closed-Loop Control
Filament Type
Recommended
PLA, PETG, TPU, PVA
Compatible
ABS, ASA, PCPA, PET, Carbon Fiber/Glass Fiber Reinforced Filaments
Sensor
Filament Runout Detection
Supported
Filament Tangling Detection
Supported
Power Loss Recovery
Supported
Electrical Requirements
Touchscreen
5-inch 480*854 resolution
Internal Storage
8GB built-in
External Storage
External Micro SD Card
Control Interface
Touchscreen/PC software
Network
Ethernet
Supported
Wireless Network
Supported
Wi-Fi Operating Frequency
2.4GHz
Wi-Fi Protocol
IEEE 802.11b/g/n/ax
Software
Single-device Control
Supported
Connection method
Local Area Network
Input Format：
STL, OBJ, STEP
Output Format：
geode
Other types(User self-configuration)
Orca InfiMech-Orca
Supported Operating Systems
Windows
Power
Voltage
110V~240V
Pmax
350W@110V 1300W@220V
Others
Operation Temperature
5℃~35℃
Packaging Dimensions of the Printer+APS Kit
450*465*550mm³
Packaging Dimensions of the Single-unit Printer
450*470*450mm³

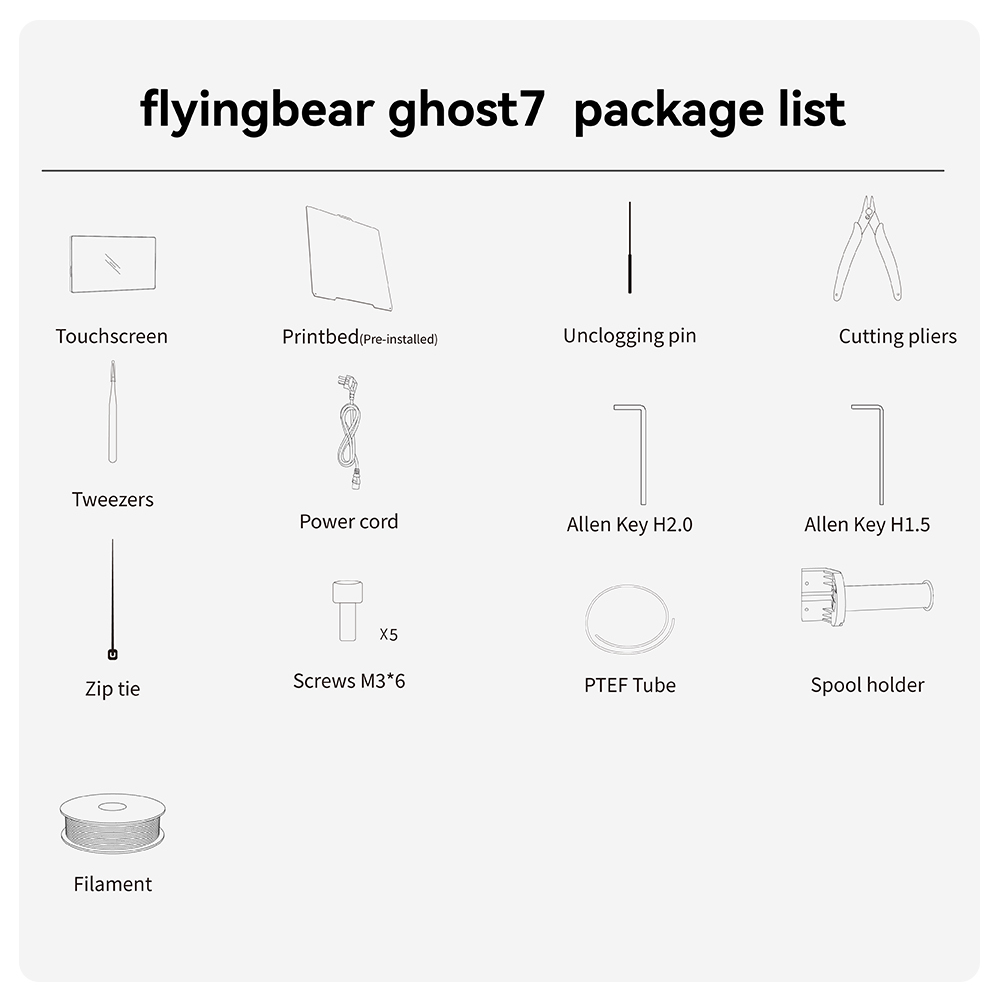

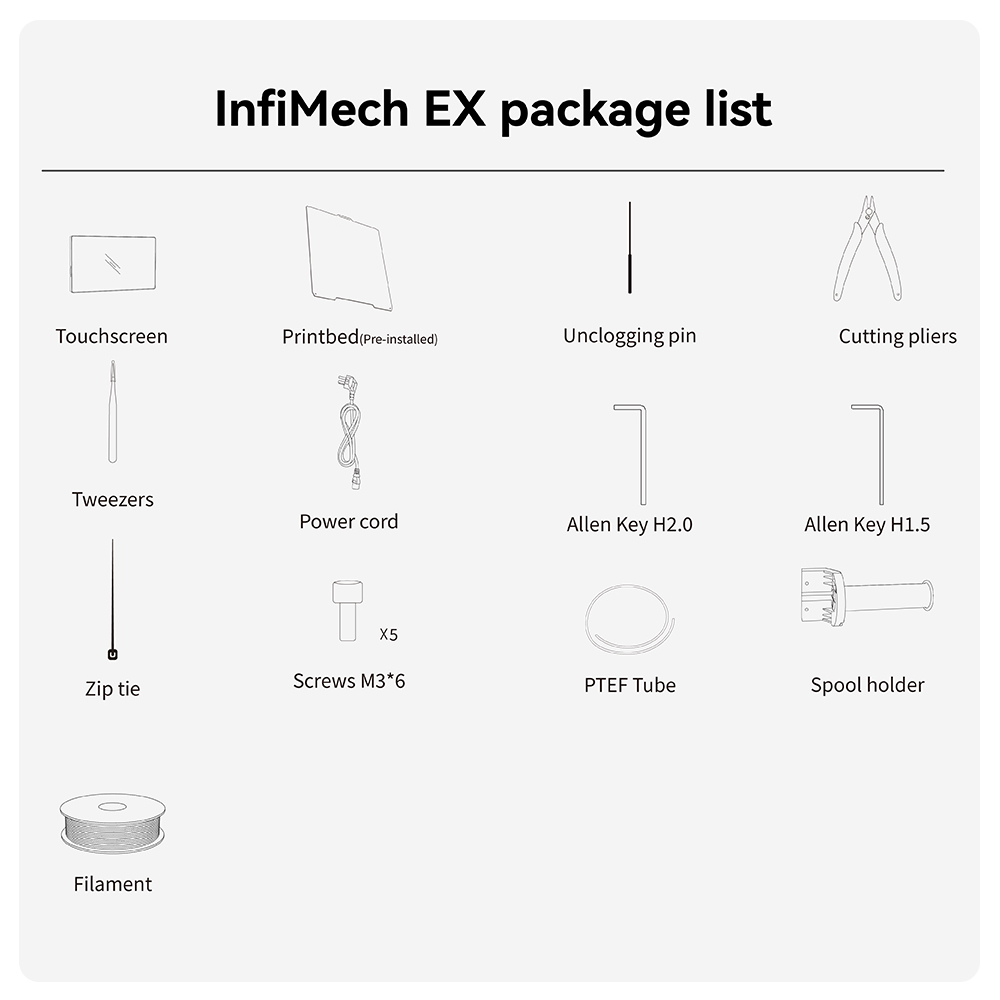

What's in the Box
