High Speed Printing with Precision
Received to use
- Whole body pre-assembly in box
- Only install touchscreen to start
Up to 20000 mm/s² Acceleration
- CoreXY move structure,up to 20000mm/s² Acceleration.
- Weight only 770g X-Axis Module, for smoother motion.
- High-volume strong extrusion by 12.5:1 reduction ratio.
- Precision-built helical gear drive,high speed long-lasting.
Super Fast with High Precison
- Active Vibration Compensation: Built-in ADXL345 module monitors machine vibrations and actively reduce shaking to improve printing quality.
- Pressure Advance Function: Minimizes oozing, bulging, and shrinkaging,to improve model surface precision.
- Independent Dual Z-leveling: High-precision force sensors check bed flatness. while Z motors adjust bed angle in real time, ensuring a perfectly smooth first layer printing.
New Generation Hotend Module
- Standard size hotend for quick and easy replacement.
- Ceramic Heating：Fast and even heating up to 300°C.
- High-temp resistant, excellent thermal conductivity.
- Dual Metal Throat: keep minimal retraction resistance.
- Max 40mm³/s flow hotend,stable and ample extrusion.
- Removable Magnetic Enclosure for easily maintenance.
Fully Enclosed Room
- Stable internal temperatures for
high-quality printing of ABS, PC, PA.
All-Aluminum Frame
- CNC aluminum profiles for sturdy and durable
construction, ensuring high-speed printing.
Easy to Use
- Wifi connection,controled by Phone or Computer
- 4.3' Touchscreen,Native Klipper UI, rich features, user-friendly.
- Basic USB Connection
Magnet PEI bed
- Double side printing,Improve the durability
- strong adhension and modle remove easily
Filament Runout Detection
- Automatic pause and alert when filament
breaks or runs out during printing.
Higher Power Lighting
- Installed for clear visibility of the printing process.
Dual Fan
- Spinning at up to 13000r/min,
elevate your model's surface quality.
Assist accessories
- Remote Camera:Monitor and capture printing moments.
- Air Filter:volatile organic absorbed,worry-free printing.
- Auxiliary Fan:to achieve higher-speed&quality printing.
TX Tech Specs
Printing Size:
220*220*250mm³
Hotend:
All-Metal
Nozzle:
0.4mm
Hotend Max temperature:
300 ℃
Heatbed Max temperature:
120 ℃
Print Max Speed:
500mm/s
Print normal Speed:
200-300mm/s²
Material Support:
PLA,PETG,TPU,ABS,PET,PVA,PC,PA,PLA-CF,PA-CF,PET-CF.
Material Diameter:
1.75mm
Printing accuracy:
±0.1mm
Mainboard:
32-bit Quad-Core
Connectivity:
USB,Ethernet,WiFi
Input File format:
STL/OBJ/GCode
Slice Software:
Orca/Prusa/Cura
Leveling Method:
automatic leveling
Language:
English,Russian,Chinese
Operating System:
Win XP/7/8/10/11/Mac OS
Power Requirements:
100-240 VAC,50/60 Hz,350W power supply
TX Dimensions:
364(W)*374(L)*470(H)mm,Net weight 15.5kg
Package box:
500(W)*500(L)*590(H)mm,Gross weight 20kg
What's in the Box
C
This machine is great probably the best bang for your buck! Print quality is fantastic. I also like the simplicity behind it, if you do need to change or repair something its very easy to work on! Customer support has bin very good as well
Thank you !
C
Solid build and once I tuned my filament it prints with precision in ABS even! So many good things to say like the door is the best door on any hobbyist 3d printer. I started with a pla test print and my moved right over to ABS. Orca Slicer has this printers profiles in it and all work but I suggest tuning the TPU profile. Oh and it prints 95A fast!
I don't like the spool holder in the back but almost everyone done this and really if they put it on the side someone else would complain if we are being honest so I'm not counting that as a negative.
Feeding filament is tricky because you can't see, I recommend taking the first Bowden piece off and much easier. The only real drawback to this machine is unscrewing that first piece of Bowden to make loading much easier. There's my only complaint.
If they ever make a 300 bed size I'm buying 2.
Oh did I tell you that communication was responsive? Yup I had one question and it's answered. Camera and fan upgrade ships separately from China and that's okay. 👍
If you want a solid build that works great and is mechanically precise ( passed .005 mm accuracy test without using random seams) printed beautifully, looks,feels, and behaves well I recommend this machine.
I
This is my first printer, and so far im really satisfied with it, would reccomend it as it simple and does really good prints
u

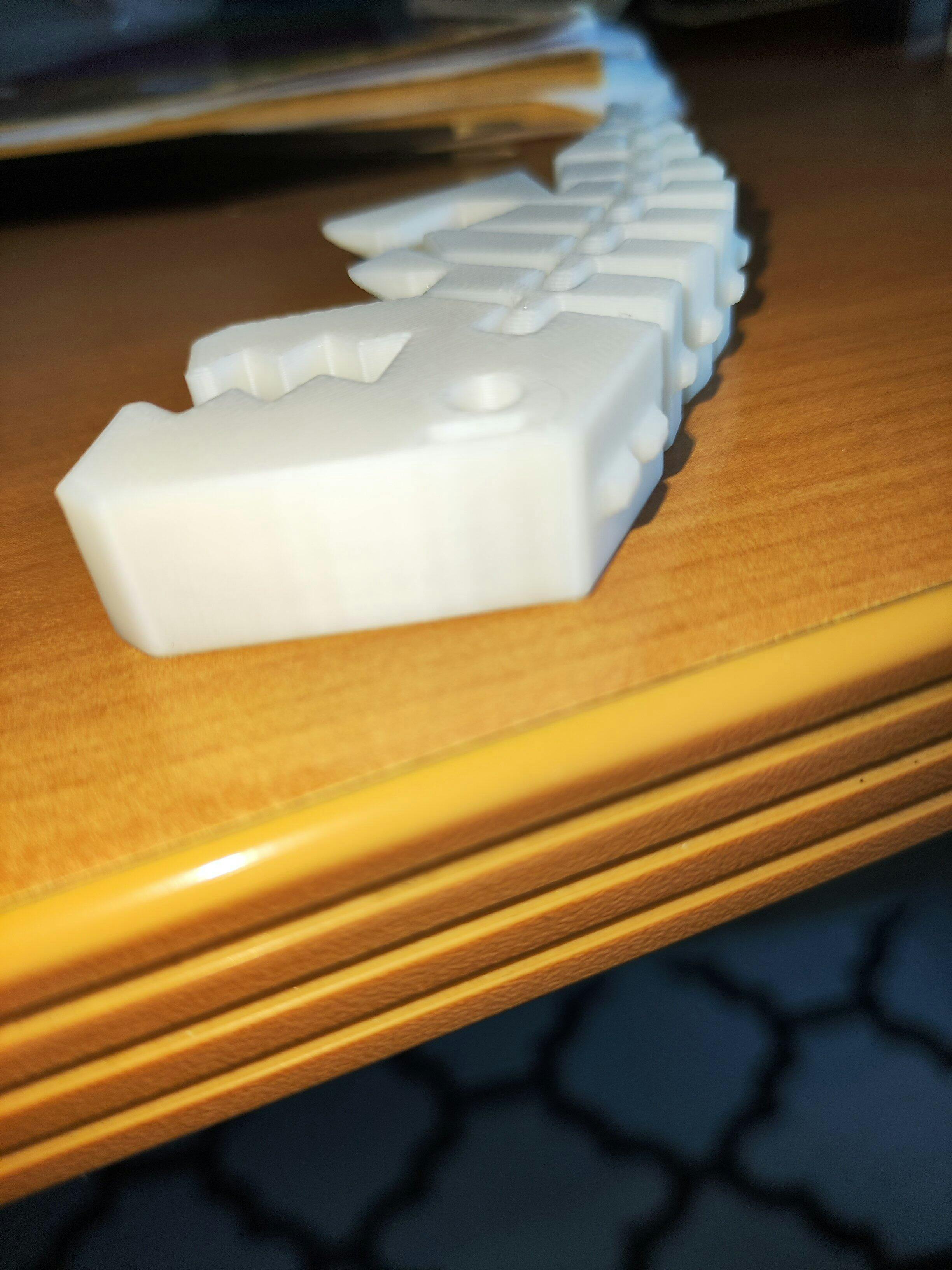

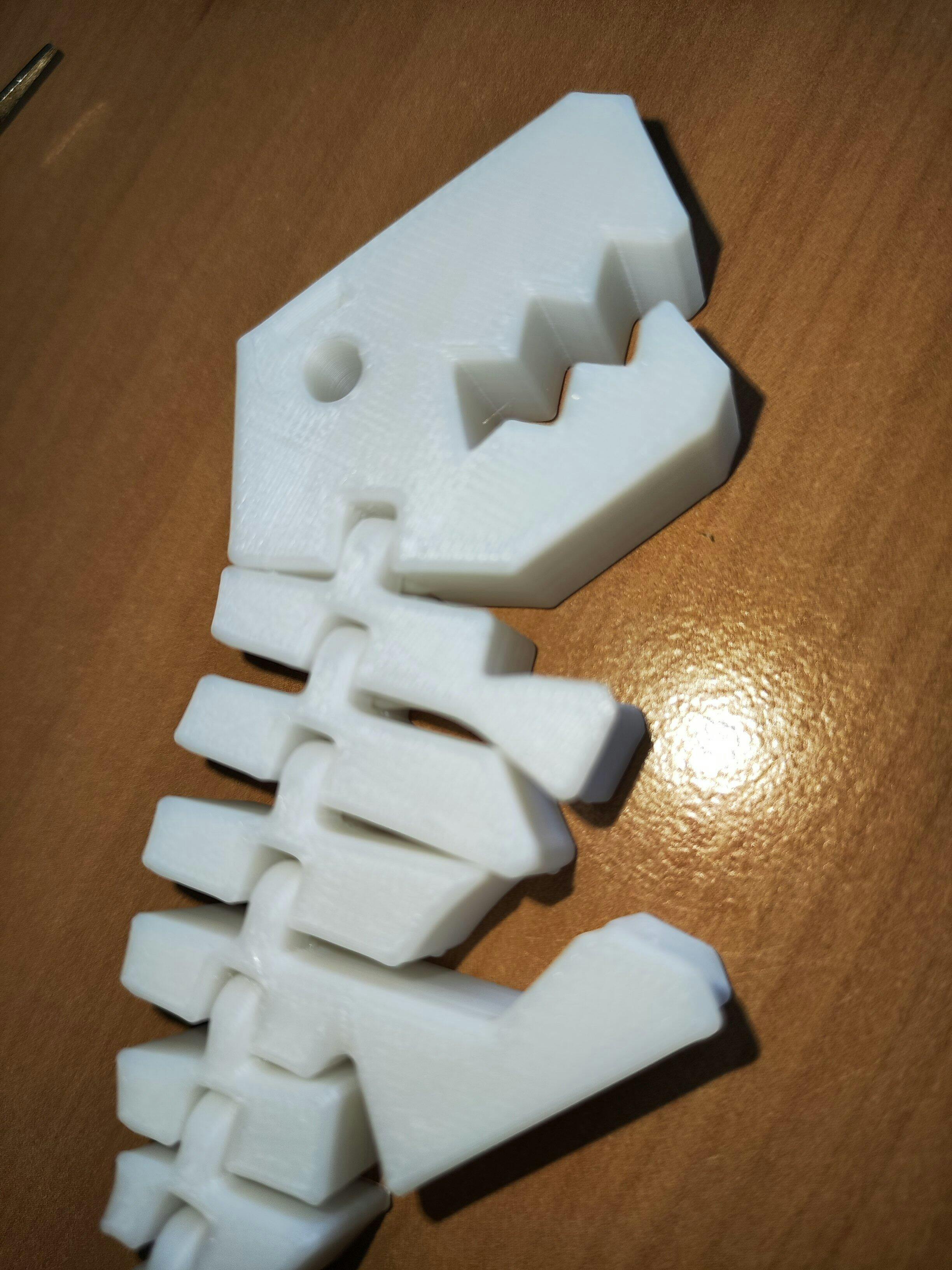

Pics for review below
u
I will say this was so easy to put together...fast and took no time at all to get up and printing the test files...look excellent...My first print using Orca Slicer was a disaster...think of a massive black afro of plastic everywhere inside the printer. It worked out though. I cleaned it all out and decided there was something I was missing. I decided to download the test files from Infimech's site and I loaded them into Orca..voila!!!...the difference was that Orca set's the print temps at a low 200 degrees...Infimech sets there test prints at 215(for PLA)...i set my prints to that..I haven't a problem since. Everything looks good.
I do have some minor cons to highlight though. First off, I don't think I got the right hat/hood for my printer. It has no Infimech logo and it has no back flap to velcro to the body(like it does in the setup video). It seems the factory is now preinstalling the velcro pads beforehand or I may have gotten a "used" printer. All I have is 2 little velcro straps to connect to the side...and that's it. I'm not sure about heat leakage/loss without that back flap. Which leads me into my 2nd issue. I ordered the package deal with accesory kit. To my surprise it didn't come with or inside the box. I emailed support and they immediately repsonded and said they would ship one..Even gave me and instant tracking number...but...it will take over a month. I've read reviews and that seems to be the one main gripe is that they don't get their kit. Seems like a no brainer to ship those kits to the country of origin and store them to get it customers quickly. Most are going to buy this printer to print ABS/ASA/Nylon so having to wait a month more to print is probably not too good for business.
Customer service and tech support are fast.They respond in a very short period of time and they seem to know what they're talking about. I asked why there was no Cura profiles and they simply said.."Cura doesn't support Klipper firmware"..good enough for me. So I'll learn Orca and move on.
Outside of the 2 complaints...the printer works. Learn Orca and hope Infimech will move some of their stock to countries closer to get it to customers faster...and you got your self a totally capable printer(I would like to know if they changed the hood style for the printer)
